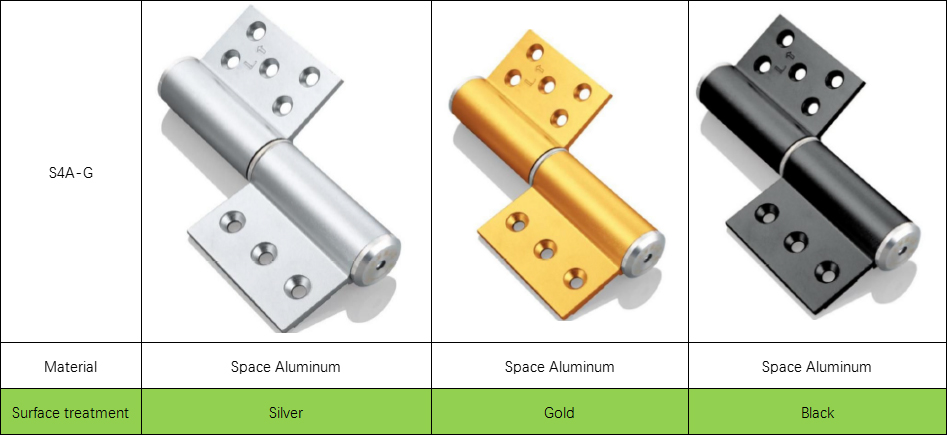

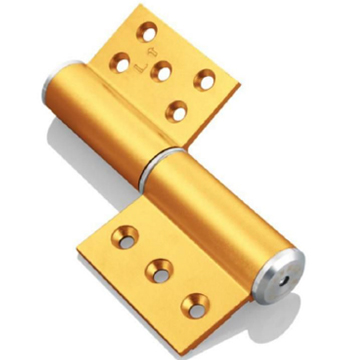

JINYING-G High Compartment Silent Hydraulic Hinge Series

Inquiry now

Parameters

Dimensions

Diagram

JINYING-G High Compartment Silent Hydraulic Hinge Series.jpg

5 inch Hinge Selection And Load Bearing Data:

Door Weight	Door Size	Qty	Remarks
<=30kg	<=2000mm x 700mm	1pcs Hydraulic + 1pcs Bearing Page	Use 2 Hydraulic Hinges is better
<=50kg	<=2000mm x 900mm	2pcs Hydraulic Hinges	Door Height>2100mm add 1 pcs Bearing Hinge in the middle Use 3 Hydraulic Hinges is better
<=50kg	<=2000mm x 1100mm	3pcs Hydraulic Hinges

6 inch Hinge Selection And Load Bearing Data:

Door Weight	Door Size	Qty	Remarks
<=45kg	<=2000mm x 700mm	1pcs Hydraulic + 1pcs Bearing Page	Use 2 Hydraulic Hinges is better
<=75kg	<=2000mm x 900mm	2pcs Hydraulic Hinges	Door Height>2100mm add 1 pcs Bearing Hinge in the middle Use 3 Hydraulic Hinges is better
<=110kg	<=2000mm x 1100mm	3pcs Hydraulic Hinges
