Model:
PCB-501Brand:
JINYINGProduct Parameter | Parameter Description |
JINYINGModel No. | PCB-501 |
Product Name | Interlock Module of Two Doors |

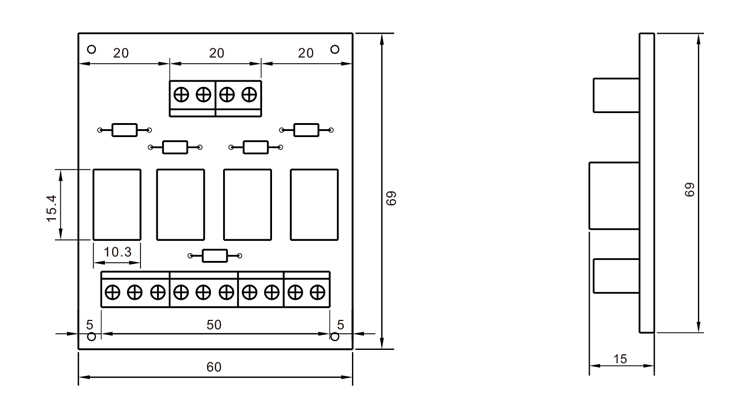

Dimensions | 69Lx60Wx15H(mm) |
Material | High quality elements with superb design |
Suitable for Door | Fail-safe electric locks with signal output |

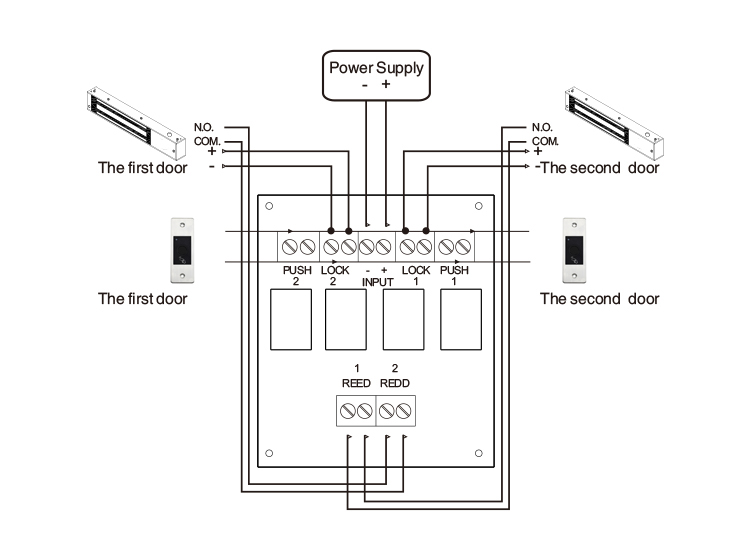

Output Capability | Applied to double-door interlocking |
Operating temp | -20~+70℃ |
Max. overload | 5A/24V |
Weight | 0.07kg |
Packing Quantity(PCS/CTN) | 100 |
Packing Size(L*W*H)(cm) | 54.3*13.5*19.3 |
Gross Weight(KG) | 7KG |
