Model:
EL-H100Brand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel No. | EL-H100 |

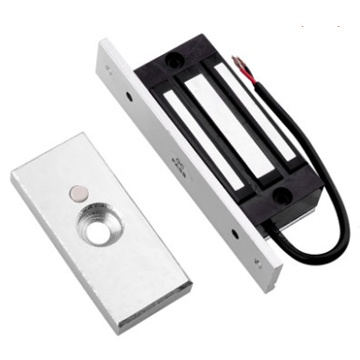

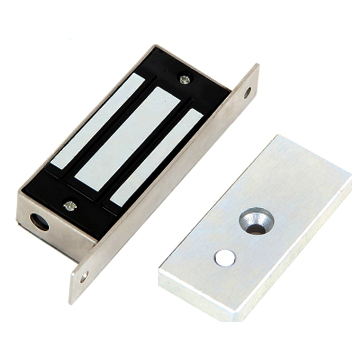

| Product Name | mini Hanging Door Electromagnetic Lock |

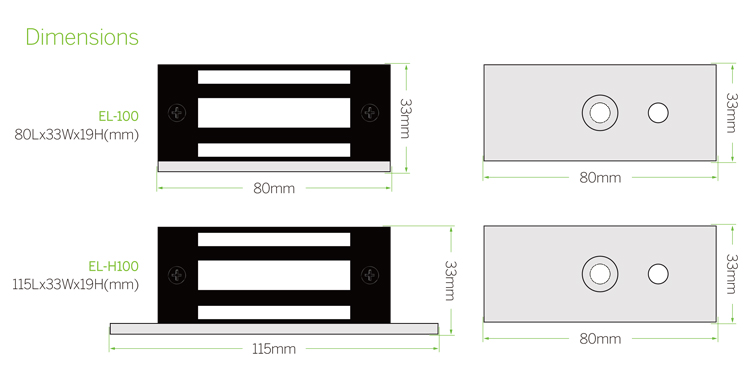

| Lock Size | 80Lx33Wx19H(mm) |
| Armature Plate Dimension | 80Lx33Wx19H(mm) |
| Holding Force | 60KG(100LBS) |
| Input Voltage | DC12V (Option DC24V) |
| Current | 12V/160mA(±10%); 24V/80mA(±10%) |
| Suitable | File Cabinet ,Display Cabinet |
| Surface Temp | ≤+20℃ |
| Operating Temp | -20℃~+55℃(-4—131°F) |
| Humidity | 0~90%(non-condensing) |
| Cover Finish | Anodized aluminum |
| Lock Finish | Zinc |
| Armature Plate Finish | Zinc |
| Unit Weight | 0.5KG |
| Standard Package | 24PCS/carton |
| Carton Weight | 12KG |
| Carton Size | 30*35*16cm |
