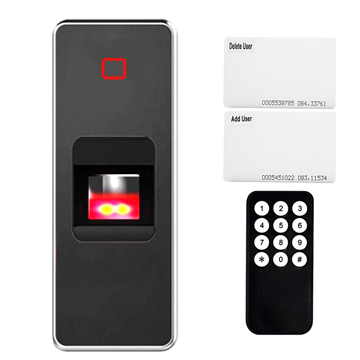

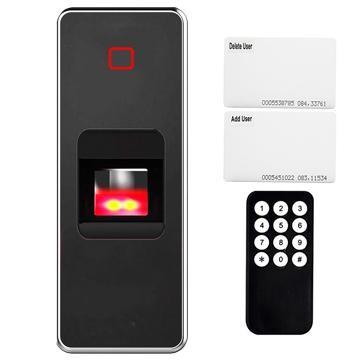

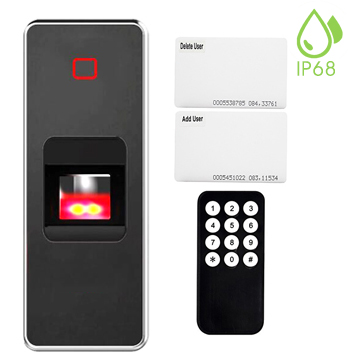

Feature:
> Plastic case, anti-vandal

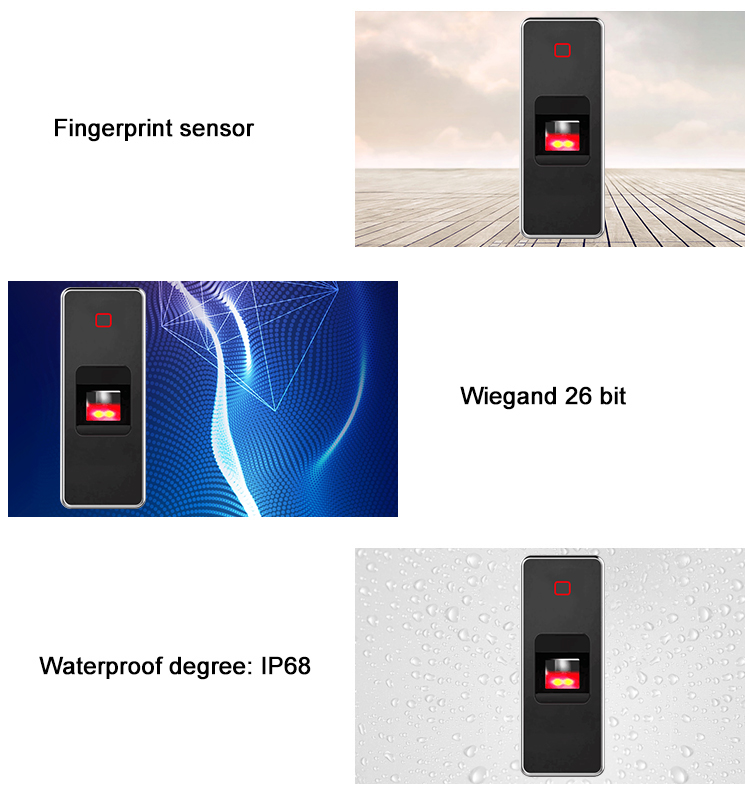

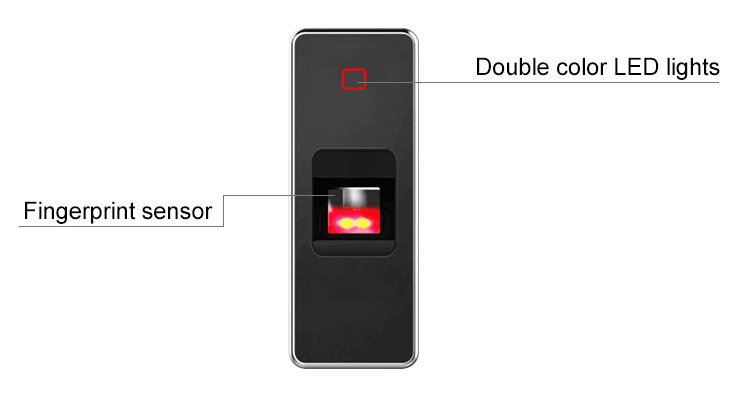

> Fingerprint access controller and reader, WG26 Input /output
> Capacity: 200 fingerprints and 500 cards
> Two accesses: card, fingerprint
Specification:
| Product Parameter | Parameter Description |
| JINYINGModel | F7 |
| Product Name | ABS & Waterproof Fingerprint Access Control |
|
| Card type | EM 125KHz |
| User Capacity | 10,000 users |
| Fingerprint Capacity | 200 |
| Working voltage | DC12V±10% |
| Reading Range | 3-6cm |
| Humidity | 20% to 90% RH |
| Door Opening Time | 0-99s(Adjustable) |
| Sleep electricity | ≤30mA |
| Static electricity | ≤80mA |
| Electric lock output | ≤3A |
| Short-circuit Protect | ≤100μS |

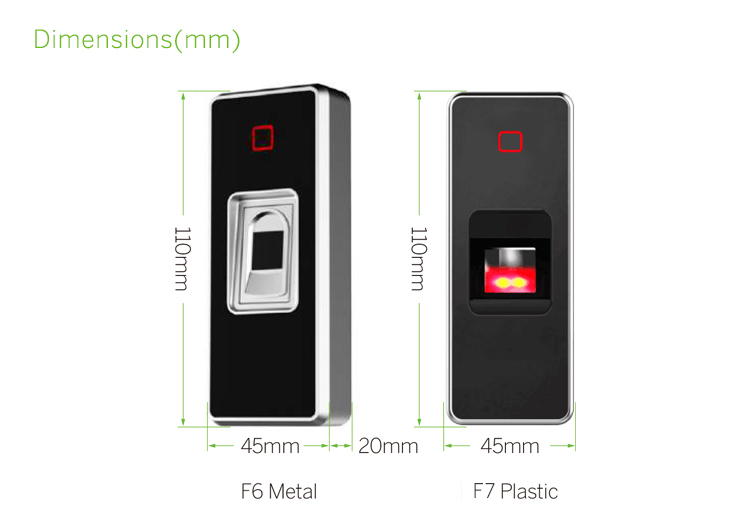

| Dimensions | 110x45x28mm |
