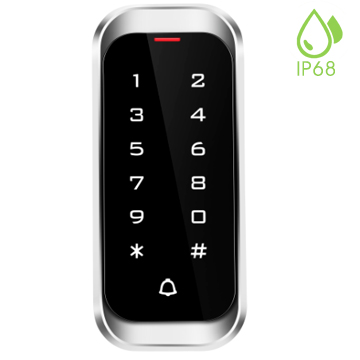

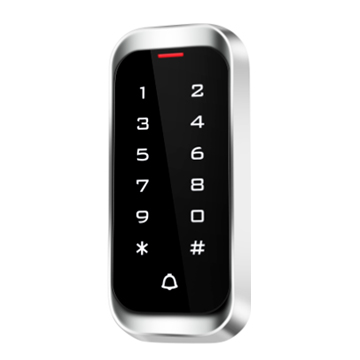

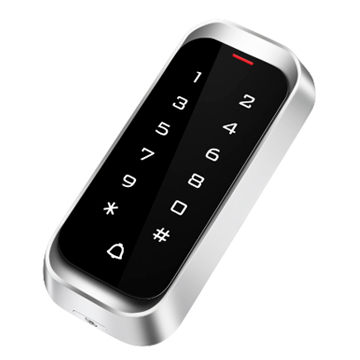

T1301 Touch Panel Access Control Metal Waterproof Access Control System Rfid Reader

Inquiry now

Parameters

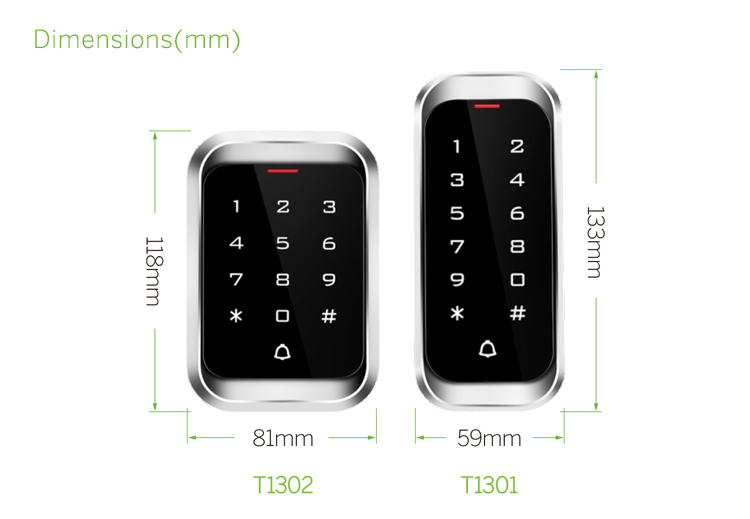

Dimensions

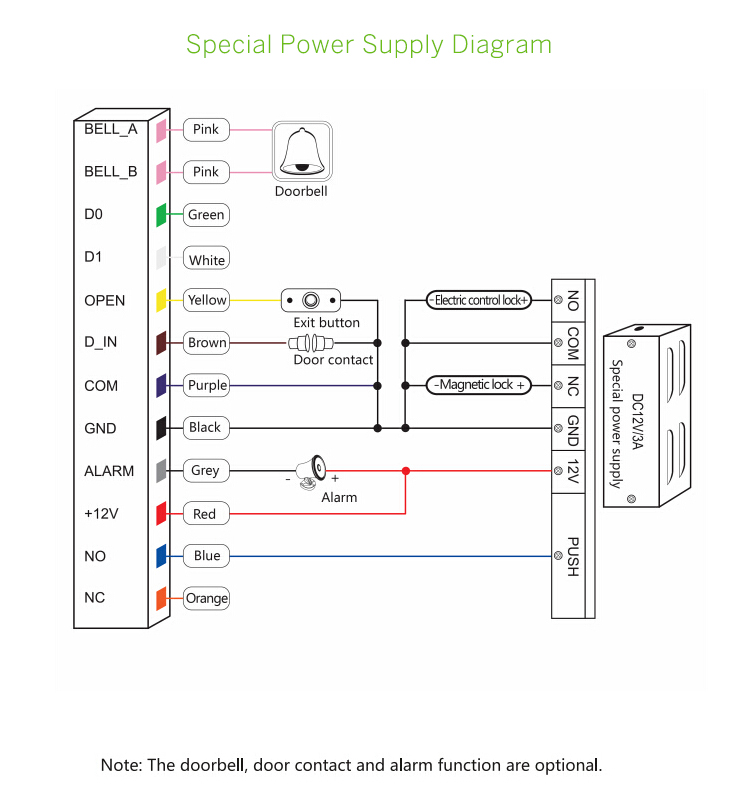

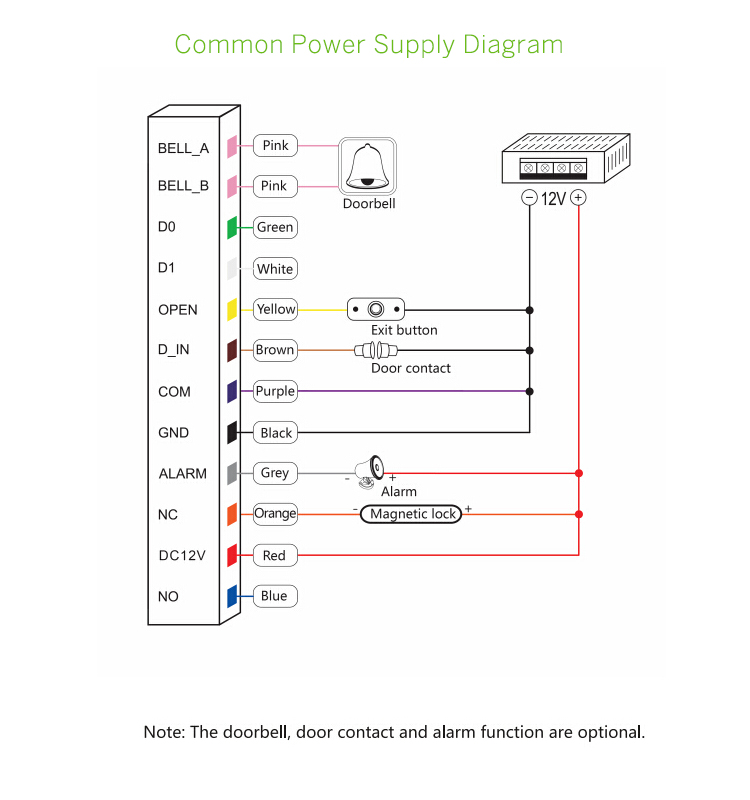

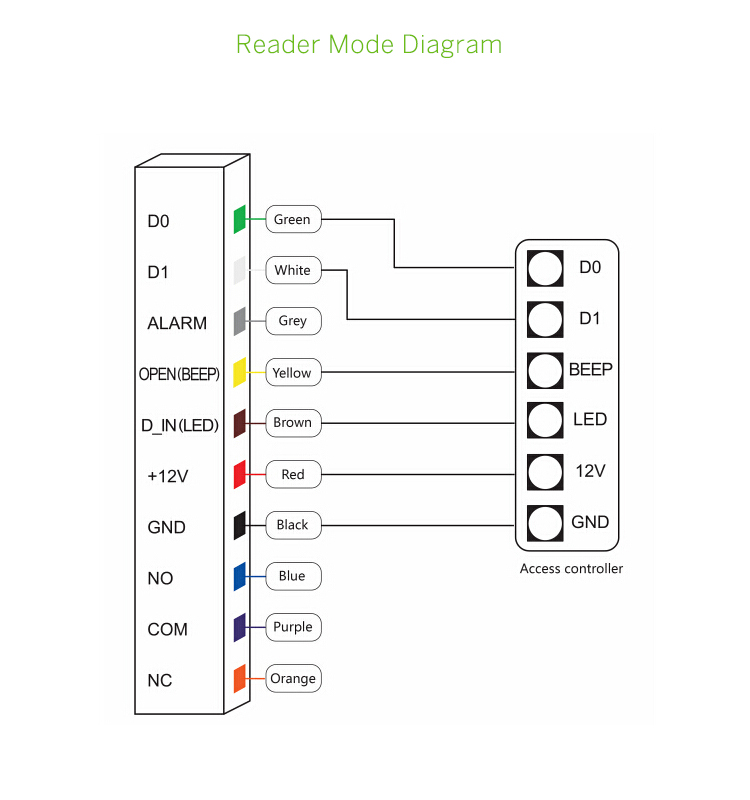

Diagram

Product feature

> Metal case, anti-vandal

> Digital backlit touch keypad

> Multi-function standalone access controller and reader,

> WG interface: WG26 Input / output

> Capacity: 2000 cards / codes

> Three accesses: card, pin, card + pin

Product Parameter	Parameter Description
JINYINGModel	T1301
Product Name	Touch Screen Standalone Access Controller

Card type	EM
Waterproof degree	IP68
Working voltage	DC12-24V
Static Electricity	≤35mA
Reading Range	2 ~ 5cm
Ambient Temperature	-40～60℃
Humidity	10%～90%
Electric Lock Output	≤1A
Short-Circuit Protect	≤100μS
Relay Output Delay Time	0-99 s
Dimension	1335921mm

Unit Weight	0.38KG

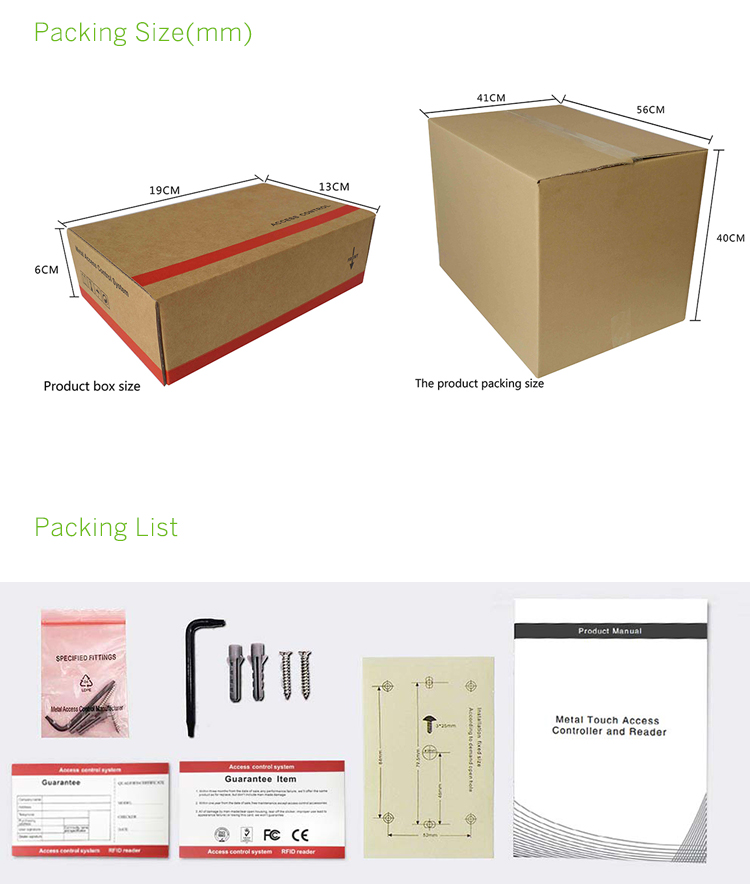

Standard Package	54PCS
Carton Weight	21.5KG
Carton Size	564041cm
