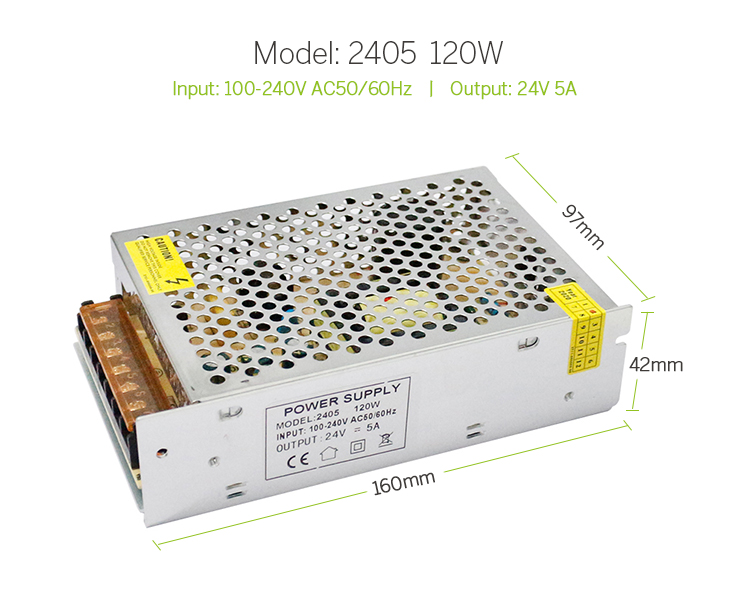

2405 Switching Power Supply Controller

Input: 100-240V, AC50/60Hz, Output: 24V5A/120W

Inquiry now

Parameters

Dimensions

Diagram

Switching Power Supply (2).jpg

12V Switching Power Supply for Security Camera and Channel
JINYINGModel	12V	Dimension(mm)	Standard Package(PCS)
1201	12V1A/12W	704030	400
1202	12V2A/24W	855834	200
1203	12V3.2A/38W	1107838	120
1205	12V5A/60W	1589842	60
1206	12V6A/72W	1589842	60
1208	12V8.5A/102W	1589842	60
1210	12V10A/120W	1989842	50
1212	12V12.5A/150W	1989842	50
1215	12V15A/180W	1989842	50
1216	12V16.7A/200W	1989842	50
1220	12V20A/240W	20011050	36
1225	12V25A/300W	20011150	36
1230	12V30A/360W	21511550	36
1240	12V40A/500W	24012565	21
1250	12V50A/600W	24012565	21
1260	12V60A/720W	24012565	18

24V Switching Power Supply for Door Holder
JINYINGModel	24V	Dimension(mm)	Standard Package
2401	24V1A/24W	855834	200
2402	24V2A/48W	1107838	120
2403	24V3A/72W	1589842	60
2405	24V5A/120W	1989842	50
2408	24V8A/200W	1989842	50
2410	24V10A/240W	20011050	36
2415	24V15A/360W	21511550	36
2420	24V20A/500W	24012565	21
2425	24V25A/600W	24012565	21

5V Switching Power Supply for Parking Managment System
JINYINGModel	5V	Dimension(mm)	Standard Package
0502	5V2A/10W	704030	360
0504	5V4A/20W	85-58-34	200
0505	5V5A/25W	110-78-38	120
0510	5V10A/50W	1589842	60
0520	5V20A/100W	1989842	50
0530	5V30A/150W	1989842	50
0540	5V40A/200W	20011050	36
0560	5V60A/350W	21511550	36
