| Product Parameter | Parameter Descr1ption |
| JINYINGModel | TC-C1 |
| Product Name | Tuya APP WiFi and Bluetooth Access Control Panel with Power Supply |
| Authentication Mode | RFID/Password/RFID+Password/Temporary Password |
| Communication | WIFI and Bluetooth |
| User Capacity | 1,000 |
| Number of Doors Supported by Default | 1 |
| Tuya Advanced Access Control Fuction | Scheduled,Temporary Password,APP Online Authorization,Record Inquiry,Remote Unlock,Automation |
| Wiegand Reader Port | 2 |
| Number of Readers Supported | 2 |
| Number of Auxiliary Inputs | 1 |
| Number of Auxiliary Outputs | 1 |
| Exit Button | 1 |
| Power Supply | DC12V±10%/500mA |
| CPU | 8-bit Mcu |

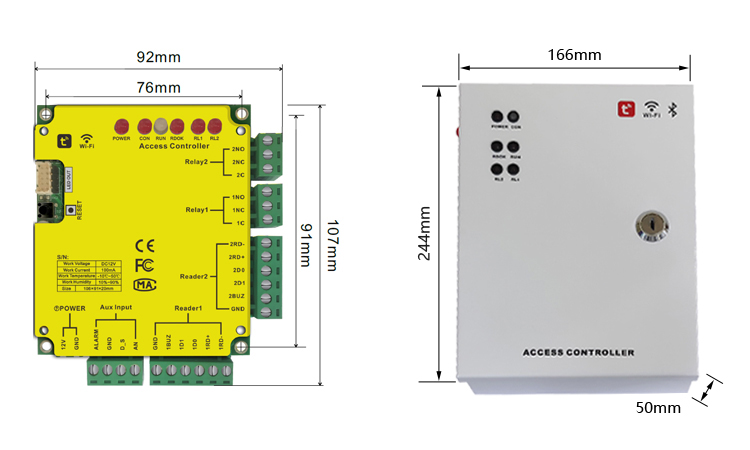

| Size of PCB board | L92XW107mm |
| Operating Temperature | -10°C to 50°C / 14°F to 122°F |
| Operating Humidity | 20% to 80% |
