Model:
D180SBrand:
JINYING| Product Parameter | Parameter Descr1ption |
| JINYINGModel | D180S |

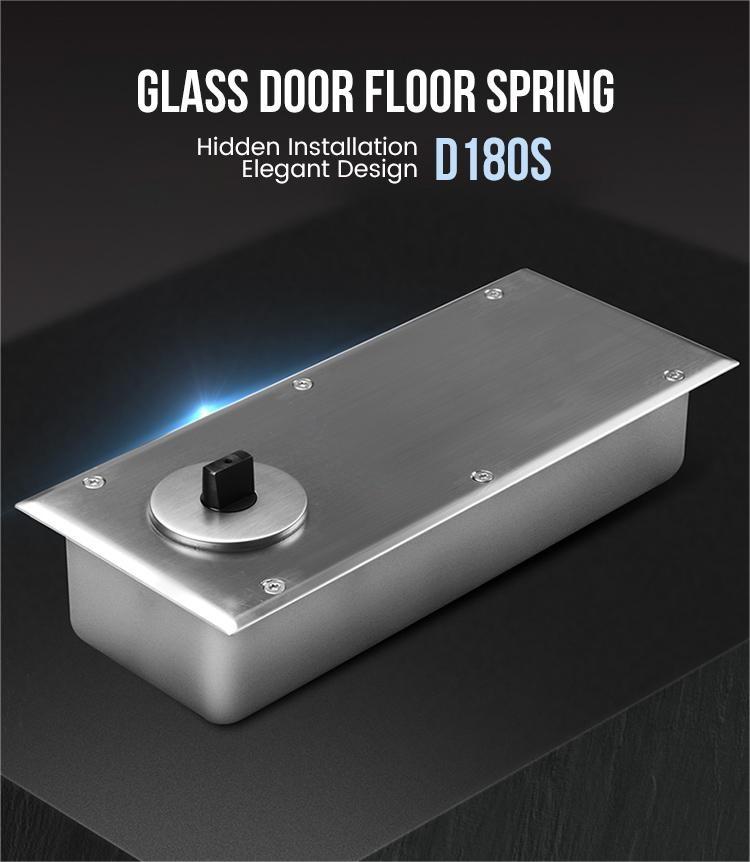

| Product Name | Automatic Floor Spring |
| Max Door Weight | 180KG |
| Max Door Width | 1200mm |
| Max Torque | 165Nm |
| Operator Weight | 5.5KG |
| Installation Mode | Under ground |
| Noise | <60db |
| Electric Lock Output | DC12V NO/NC Touch |
| Opening/Closing Time | 7 ~ 12S |
| Opening Angle | 86°~95° |
| Power Supply | AC220V +10% 50/60Hz |
| Power Rated | 55W |
| Standby Power | <2w |
| Environment Temperature | -20℃ ~ 55℃ |
| Protection Level | IP68 ( Optional ) |
| Operator Dimension | 320*110*70mm |
| Control Box Dimension | 215*205*60mm |
