Automatic Rolling Door Operators

  • Model:

    AC-300

  • Brand:

    JINYING
Inquiry now
  • Parameters
    •
  • Dimensions
    •
  • Diagram
    •
Single Phase Moter
JINYINGModelRated Output Torque (N.m)Rated Output Speed(R/min)Motor PowerRated VoltageRated Current(A)Continuo us working Time(min)Durm Dube Outer DiameterMax Lifting ForceMax Lifting Height
AC-300-1P2255.4200W220V/50Hz2.8A8114mm300KG6M
AC-600-1P4125.4300W220V/50Hz3.3A8140mm600KG6M
AC-800-1P6474400W220V/50Hz4.7A8165mm800KG8M
AC-1000-1P8094400W220V/50Hz4.9A8165mm1000KG8M
AC-1500-1P8093.5700W220V/50Hz8.2A8165mm1500KG9M

Three Phase Moter
JINYINGModelRated Output Torque (N.m)Rated Output Speed(R/min)Motor PowerRated VoltageRated Current(A)Continuo us working Time(min)Durm Dube Outer DiameterMax Lifting ForceMax Lifting Height
AC-300-3P1685.4250W380V/50Hz1.5A15114mm300KG6M
AC-600-3P3435.4250W380V/50Hz1.5A15140mm600KG6M
AC-800-3P6475.4370W380V/50Hz2.3A15165mm800KG6M
AC-1000-3P8095.4370W380V/50Hz2.8A15165mm1000KG7M
AC-1300-3P14014850W380V/50Hz3.2A15219mm1300KG8M
AC-1500-3P161741000W380V/50Hz3.8A15219mm1500KG12M
AC-2000-3P24503.61000W380V/50Hz4.1A15245mm2000KG12M

DC24V Motor Technical Parameters
JINYINGModelRated Output Torque (N.m)Rated Output Speed(R/min)Motor PowerRated VoltageMotorDurm Dube Outer DiameterMax Lifting ForceMax Lifting Height
Input VoltageRated Current
DC-3002253.5180W220V/50Hz24V12A114mm300KG6
DC-6004123.8220W220V/50Hz24V15A140mm600KG

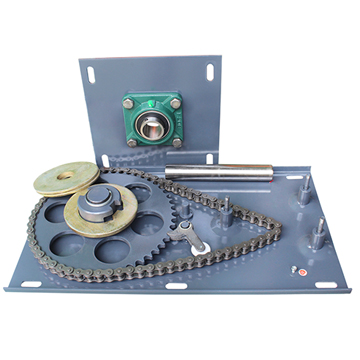

Packing List for Rollin Door Operator
JINYINGItemQuantity
Motor1
External button switch1
Key2
Sprocket bracket1
Square plate1
Circular I2
Circular II1
Cylindrical pin1
Bearing bracket1
Bearing1
User’s manual1
