| Product Parameter | Parameter Description |
| JINYINGModel | BL-2800 |
| Product Name | Fail-Safe Electric Bolt for Fully Frameless Glass Door |
| Feature | Fail-safe type (Power to lock) |

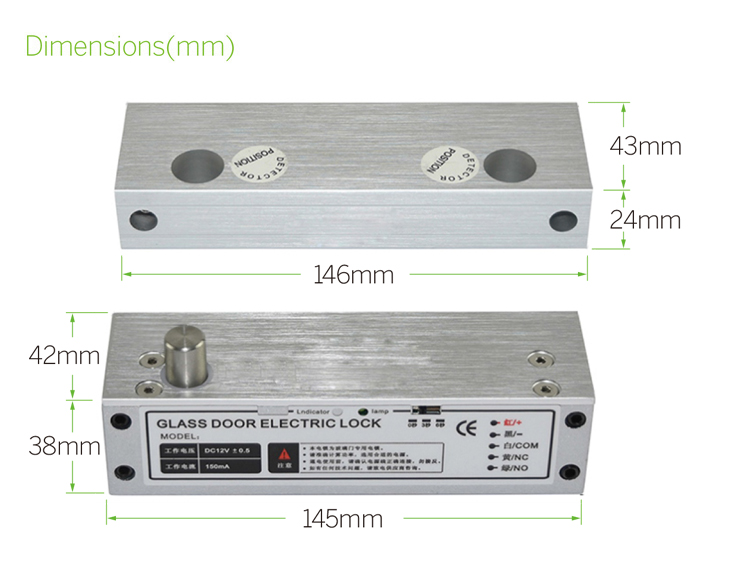

| Face Plate | 150Lx40WX37H(mm) |
| Bolt | 16(length)*13(diameter)(mm) |
| Voltage | DC12V(DC24V) |
| Start Current | 960mA |
| Standby Current | 180mA |
| Solid Bolt | polishing housing, 1000kg Holding Force |
| Suitable For | 12mm Electric Bolt For Fully Frameless Glass Door |
| Signal Output | Door status Output,NC/COM |
| LED | Light on indicates locked, light off indicates unlocked |
| Surface Temp | Low Temperature |
| Induction Distance | 8mm |
| Special Designed | Tested to 500000 operations |
| Face place material | Stailess Steel |
| Weight | 0.75KG |
| Standard Package | 20PCS |
| Carton Weight | 14.2KG |
| Carton Size | 40.5*33*13 (cm) |
