| Product Parameter | Parameter Description |
| JINYINGModel | BL-3000 |

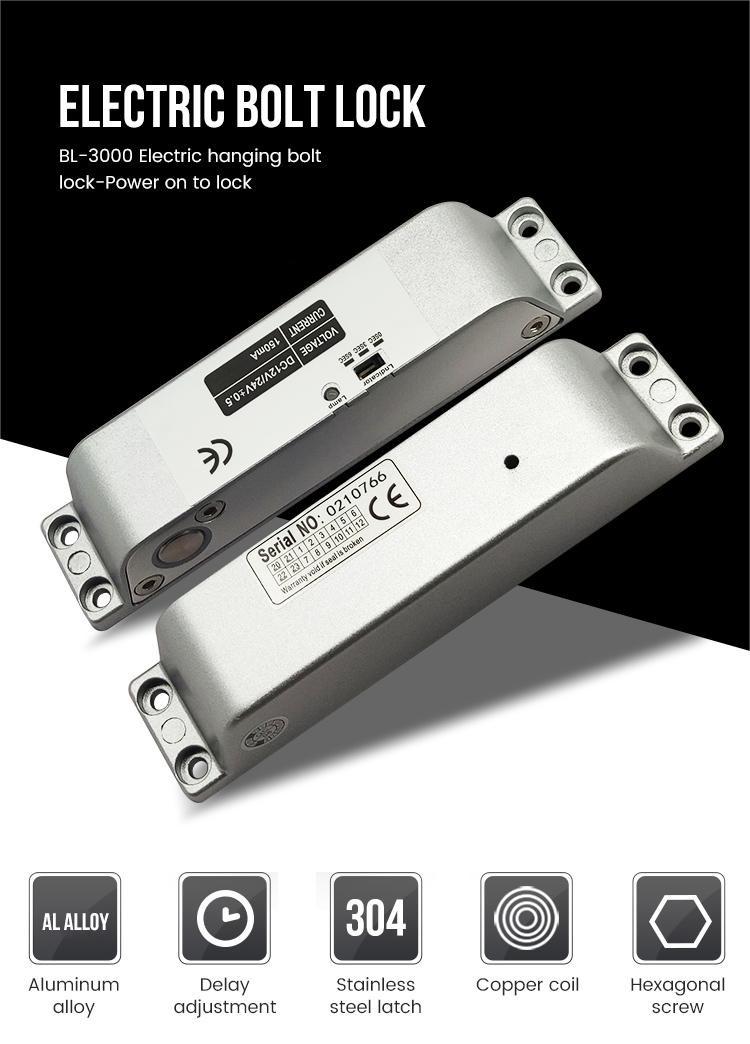

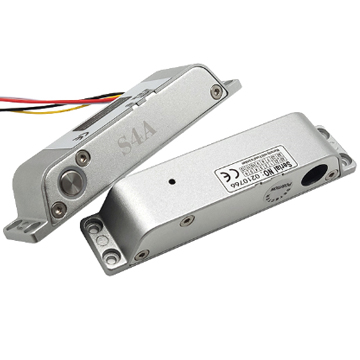

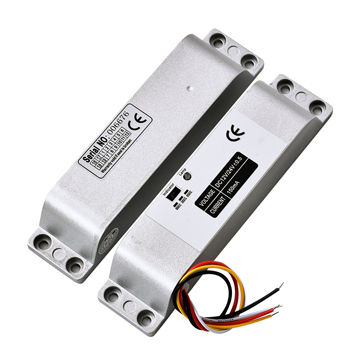

| Product Name | Electric Bolt Lock Hanging with Timer |
| Feature | Fail-safe type (Power to lock) |

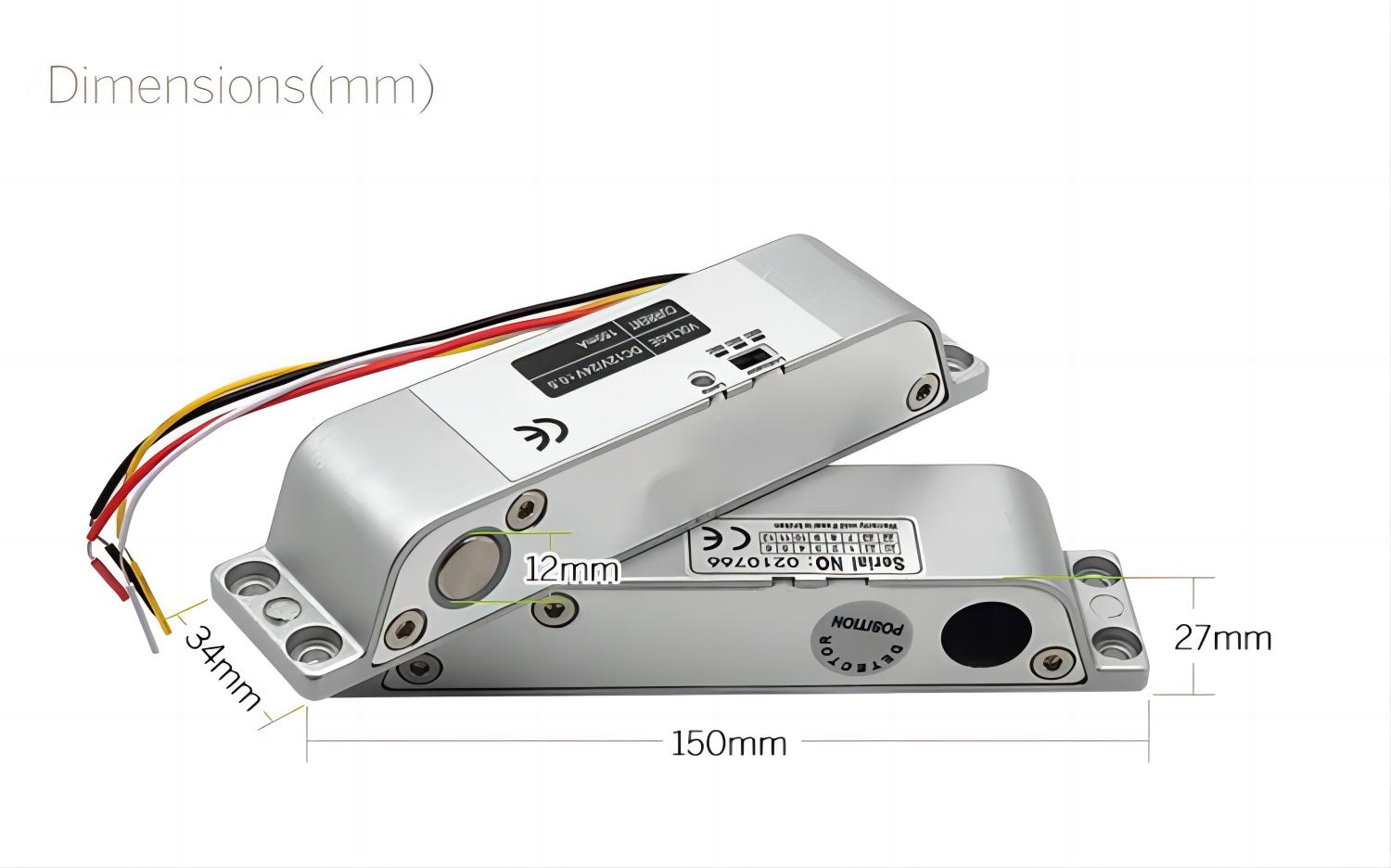

| Face Plate | 150Lx40WX37H(mm) |
| Bolt | 16(length)*13(diameter)(mm) |
| Voltage | DC12V(DC24V) |
| Start Current | 960mA |
| Standby Current | 180mA |
| Solid Bolt | polishing housing, 1000kg Holding Force |

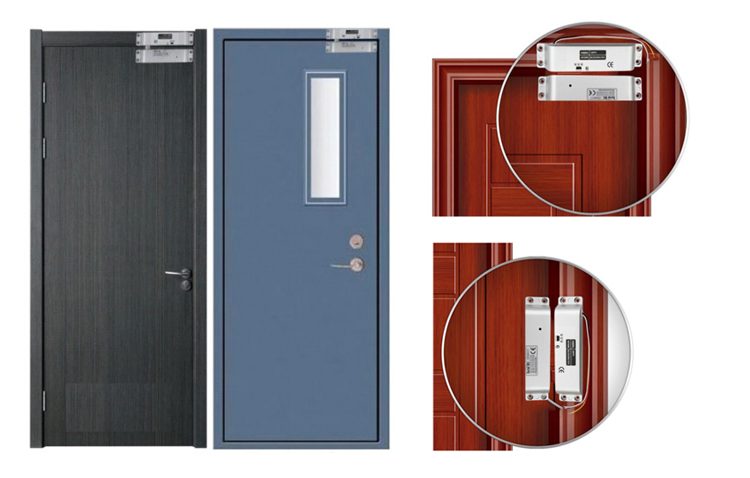

| Suitable For | 12mm Electric Bolt For Fully Frameless Glass Door |

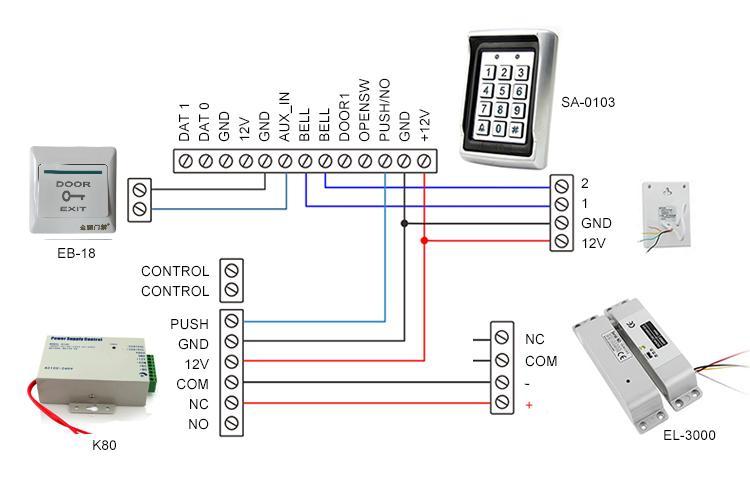

| Signal Output | Door status Output,NC/COM |
| LED | Light on indicates locked, light off indicates unlocked |
| Surface Temp | Low Temperature |
| Induction Distance | 8mm |
| Special Designed | Tested to 500000 operations |

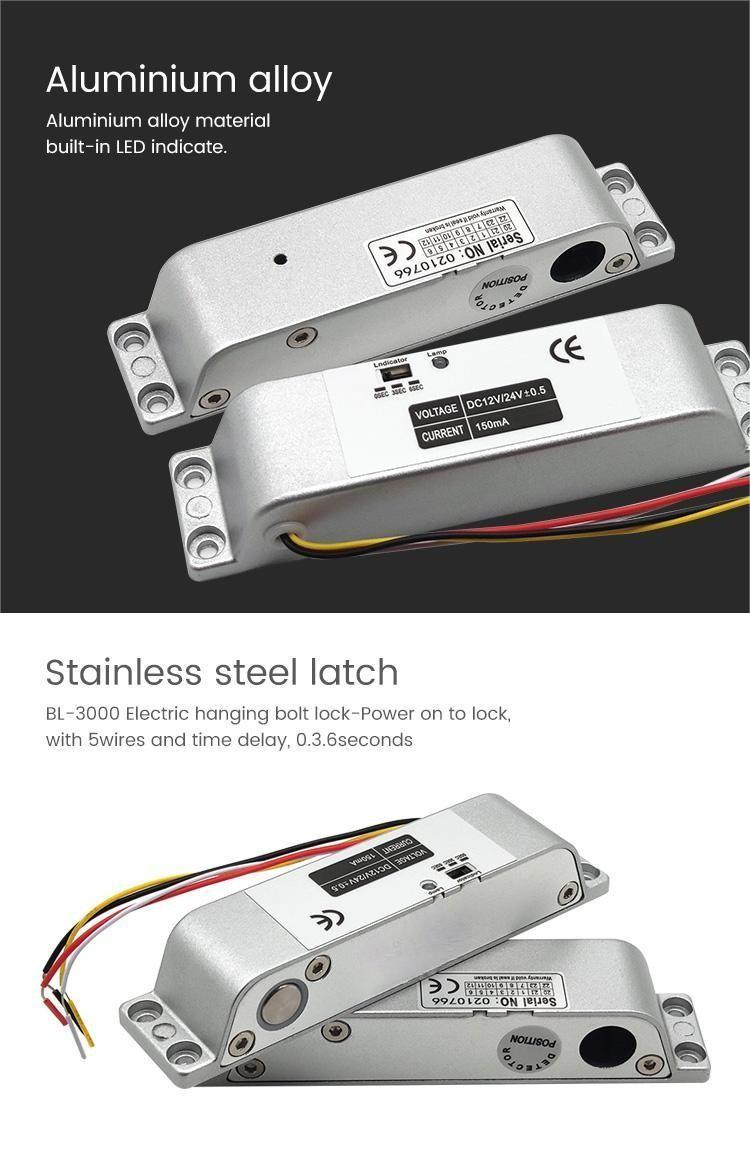

| Face place material | Stailess Steel |
| Weight | 1.36kg |

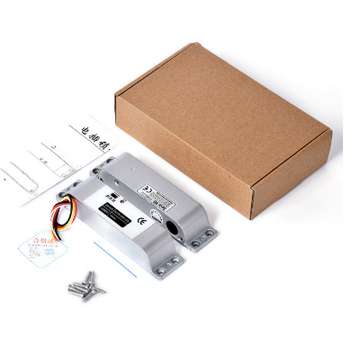

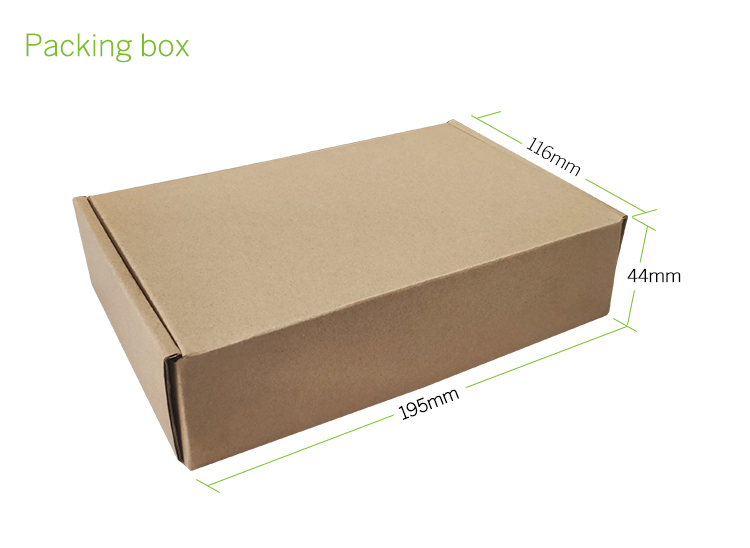

| Standard Package | 40PCS |
| Carton Weight | 21.5KG |
| Carton Size | 47*26*40 (cm) |
