SL-120U

Door position detection and bolt

position (N.C. & N.O.) output points

Power Supply: DC12~24V

Relock function

※ Example：SL-120B has door position detection and bolt position (N.C. & N.O.) output points. Please note that this electric lock has an oval cylinder and its width is 5.8cm. Therefore, the best position to install is at the center of the door leaf (not door frame). Please refer to installation diagram.

Fail-secure type (power to open) with MOV surge protection for higher security places.

Built-in door open or door close state detection output point (250mA: N.C./ N.O.).

Suitable for 180° door.

Stainless steel bolt is able to sustain more than 1200 kg of shear force.

Long unlock state function.

"Built-in oval cylinder as unlocking device.

Use of oval cylinder to unlock when power cut occurred or during emergency."

"Built-in photo couplers door open push button input contact.

Door will lock again automatically  when door is not open within 5 seconds."

Operation temperature：0~90℃ ; Humidity：85%Rh max.

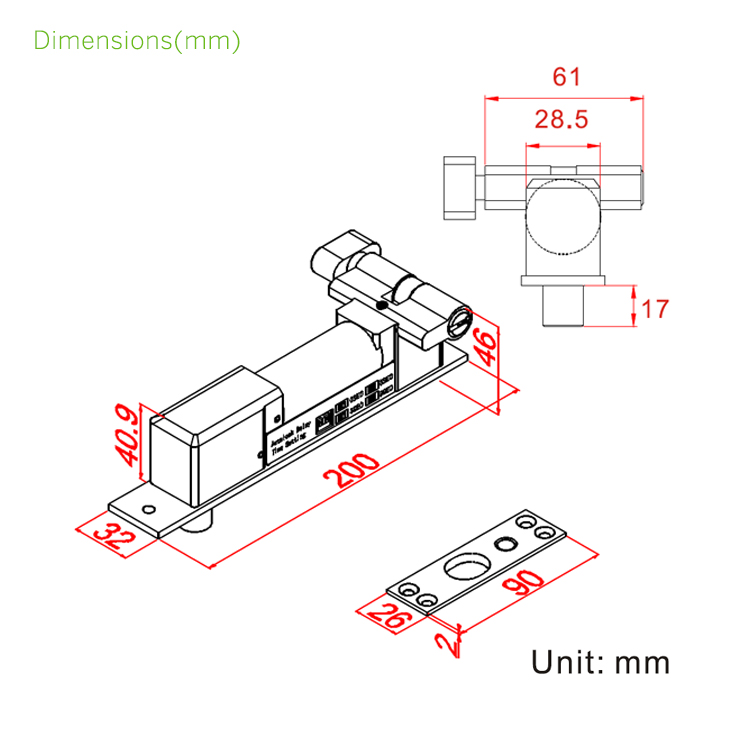

Dimensions：

Body：200 L) x 32(W) x 46(D) (mm)

Strike plate：90(L) x 26(W) x 2.5(D) (mm)

Bolt：17(Throw) x 15.5(Diameter) (mm)

Weight：1100g

Certification：CE
