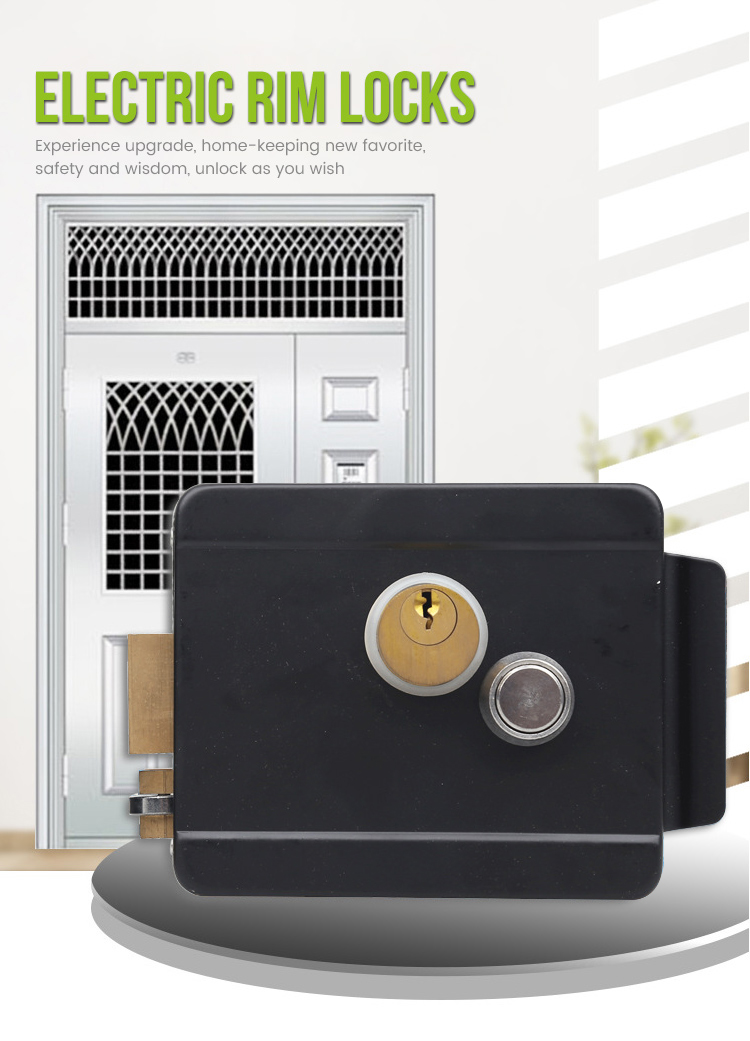

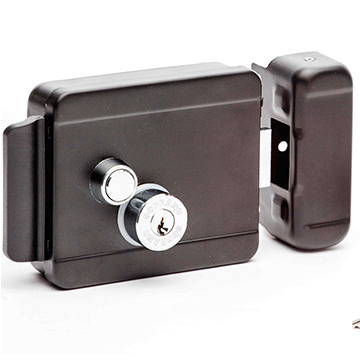

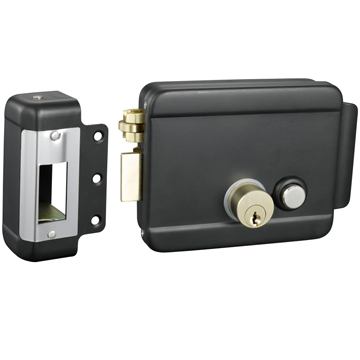

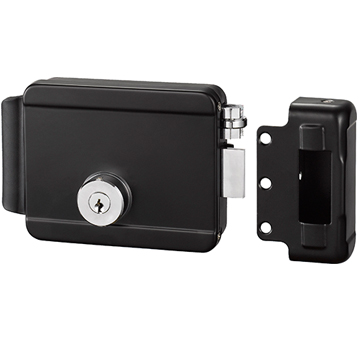

ER-B2 Smart Security Lock CE Standard 12V Electric RIM Door Lock with Black color

Black Spray Paint, Double Cylinder

Inquiry now

Parameters

Dimensions

Diagram

Function:

Double connected cylinders electric rim lock

Center brass connected lock cylinders with chroming(30mm)

Lock body: steel

Brass big latch with chroming; Brass small roller latch with chroming

3pcs brass keys with nickel plated

With strike plate

Surface finished: black spray paint

Lock thickness: 2mm

Lock size: 125*98*36mm

Voltage: 12-18VDC; Current:3A

Operation time: 0.5s;

Suitable for: Metal door, wooden door, Stainless steel door

Can be connected Access Control System

Right handed or left handed is available

Different surface finished available Spray,SS,AB,SN,SNGP,SNBN, TP ect

Product Parameter	Parameter Description
JINYINGModel	ER-B2
Product Name	Smart Security Lock CE Standard 12V Electric RIM Door Lock with Black color

Process	Iron
Cylinder	Double Cylinder
Voltage	DC12V

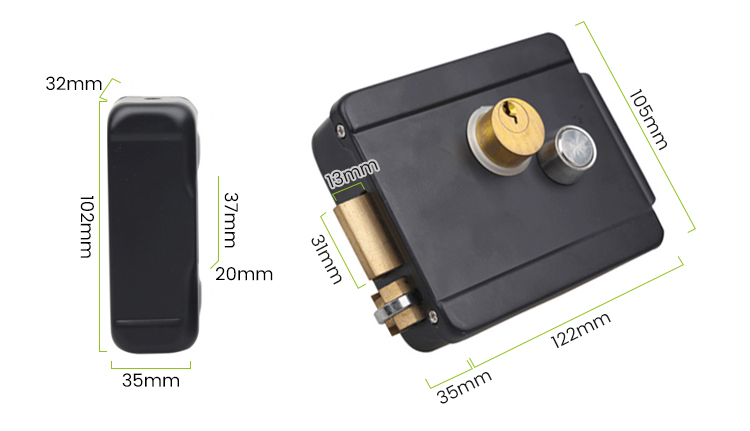

Lock Body Size	Length 122 * Width 105 * Height 35mm
Unlock Voltage	6V ~ 15V
Service Life	500,000 times
Weight	1.4KG
Packing	12 Pieces/CTS
Unlock current	1.5A ~ 3A ( only turn on for 1 second )
Sensitivity	1s
Locking method	Collision Lock
Use Range	Wooden Door, Metal Door
Surface Treatment	Power Spraying,Electroplating
