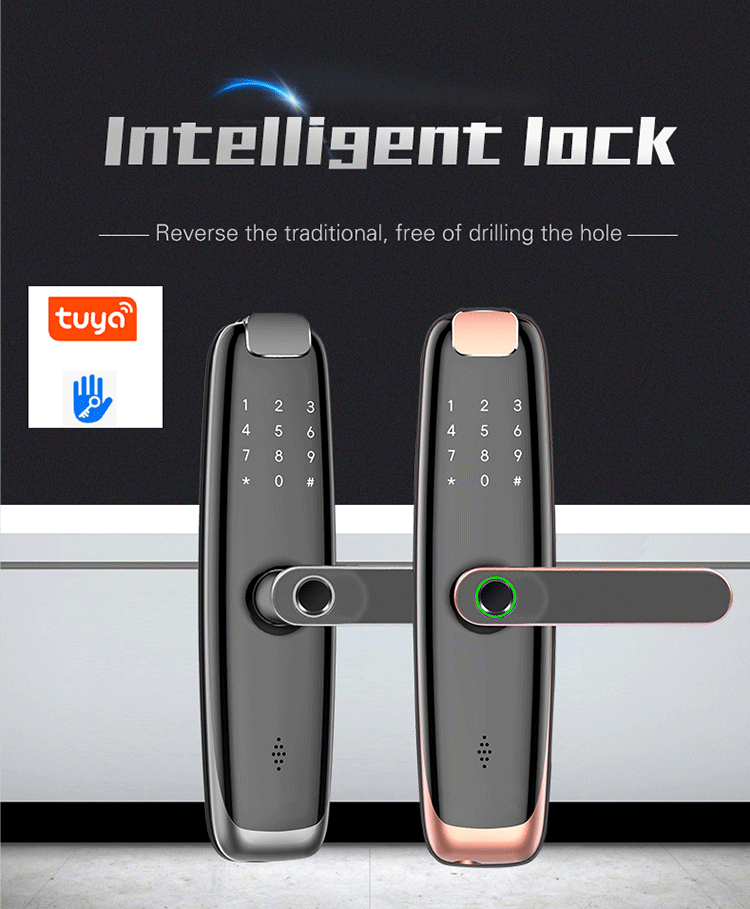

iLock02 Inteligente Smart Fingerprint Lock Door Biometric Intelligent Electronic Fingerprint WiFi TTLock Door Lock

5 in 1 unlocking methods: Fingerprint + Pin code + key + card + APP

Inquiry now

Parameters

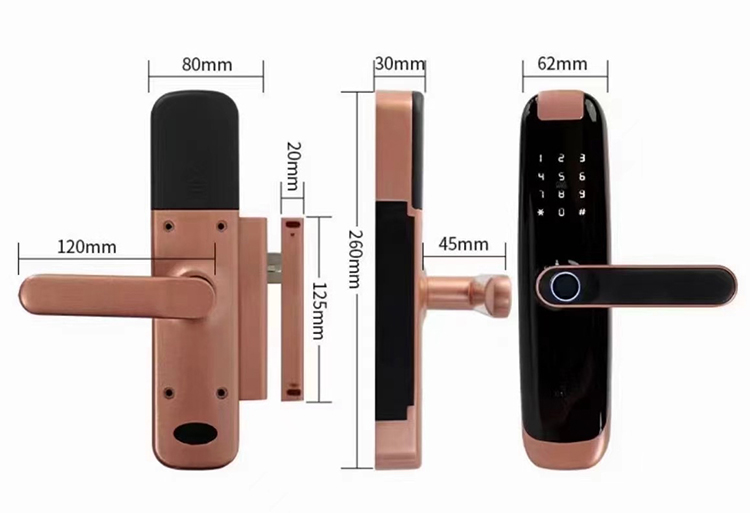

Dimensions

Diagram

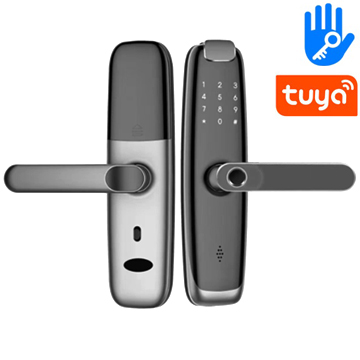

iLock02 Smart Fingerprint Door Lock TTLock

5 in 1 unlocking methods: Fingerprint + pin code + key + card + APP

2 colors on optional: Black & Rose Gold

Door fit: Wooden door, aluminum door, sheet steel door, etc...

Door thickness: 38-70mm

Product Parameter	Parameter Descr1ption
JINYINGModel	iLock02
Product Name	Smart Fingerprint Door Lock

APP	TTLock / Tuya
Power supply	4.5v-6.5v (i.e. 4 dry batteries)
Typical quiescent current	<55 μA
Door opening mode	fingerprint, swipe card, password, wechat applet TTLock APP and remote control
Working current	> 280 MA (strong driving ability)
Fingerprint number of door opening	<= 100
Number of door opening cards	<= 100
Number of door opening passwords	<= 100
Door opening remote control quantity	<= 30
Resolution	500dpi
Rejection rate	≤ 0.15%
False recognition rate	50.00%
Working temperature	- 10 ℃ ~ 60 ℃
Relative humidity	20% ~ 93%
