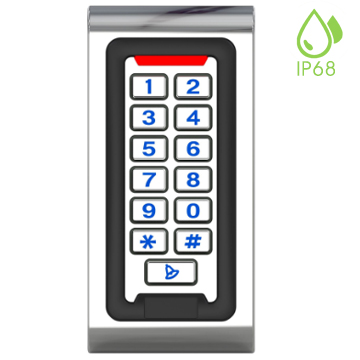

S601EM-W.e Metal Tuya RFID Access Control Keypad

Metal Keypad

Inquiry now

Parameters

Dimensions

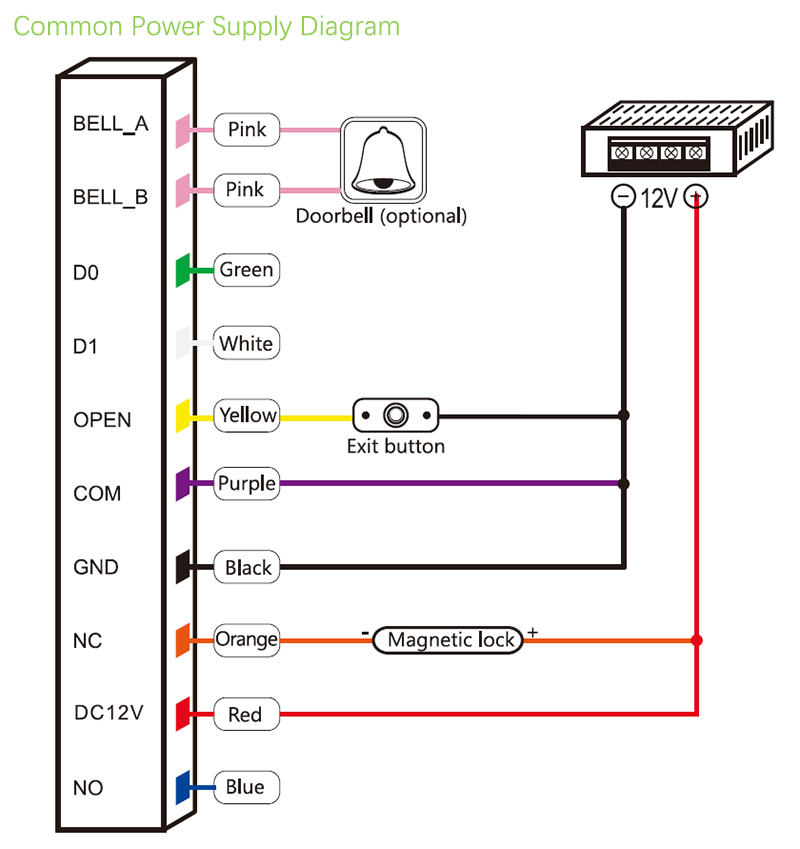

Diagram

Feature:

> Waterproof Degree: IP68

> Metal structure design, anti-vandal

> Digital backlit keyboard

> All-in-one, WG26 output / input

> User capacity: 2000 card user card, 2000 user password

> Three way to open the door, card, password, card + password

> The doorbell button and interface: buttons and isolation circuit,

> Connect to any external bell

JINYINGModel:

> S601EM.e: Metal Keypad, Read RFID-125KHz Cards

> S601MF.e: Metal Keypad, Read Mifare-13.56MHz Cards

> S601EM-W.e: Metal Keypad, IP68 Waterproof, Read RFID-125KHz Cards

> S601MF-W.e: Metal Keypad, IP68 Waterproof, Read Mifare-13.56MHz Cards

Specification:

Product Parameter	Parameter Description
JINYINGModel	S601EM-W.e
Product Name	Waterproof Access Control Metal Keypad

Card type	EM or MF
Waterproof degree	IP68
User capacity	2000 card user card, 2000 user password
Environment Humidity	10%～90%
Lock output	≤3A
Working voltage	AC/DC 12 - 24V
Static electricity	≤30mA
Alarm output	≤20A
Output short circuit protection time	≤100μS
Card read distance	5~8cm
Ambient temperature	‘-45℃~60℃
Door Opening Time	0~99s(Adjustable)
Dimension	1205618mm
