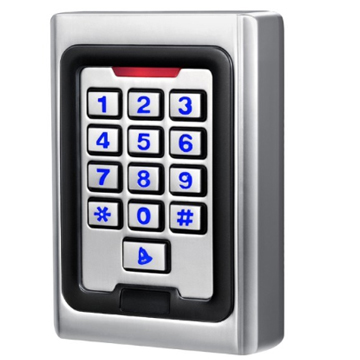

K5 Tuya Metal Access Control Keypad

  • Model:

    K5EM
  • Brand:

    JINYING
  • Parameters

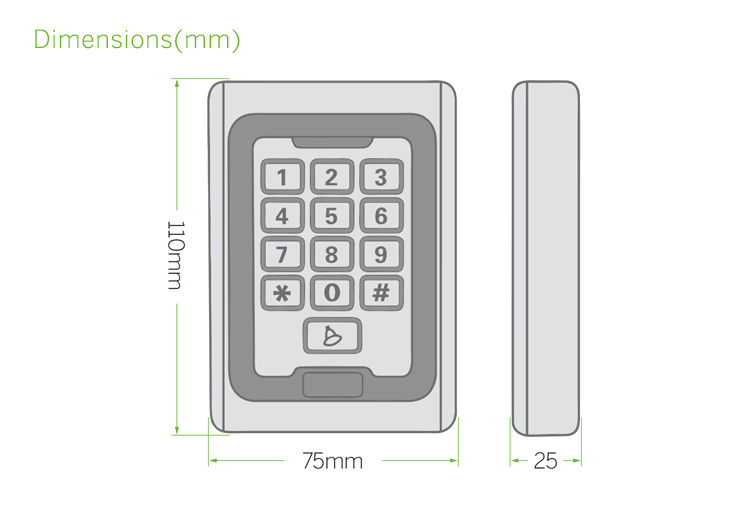

  • Dimensions

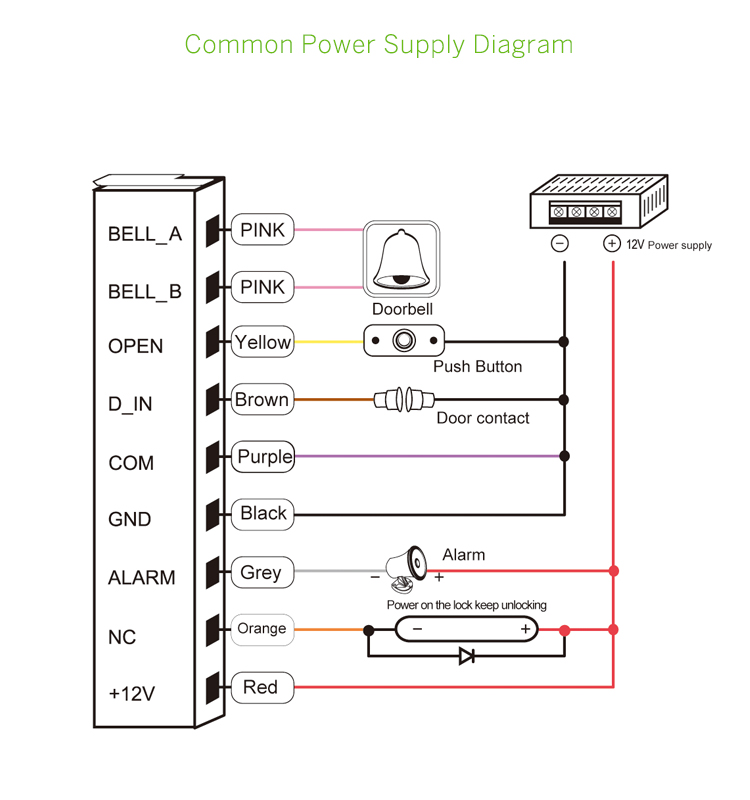

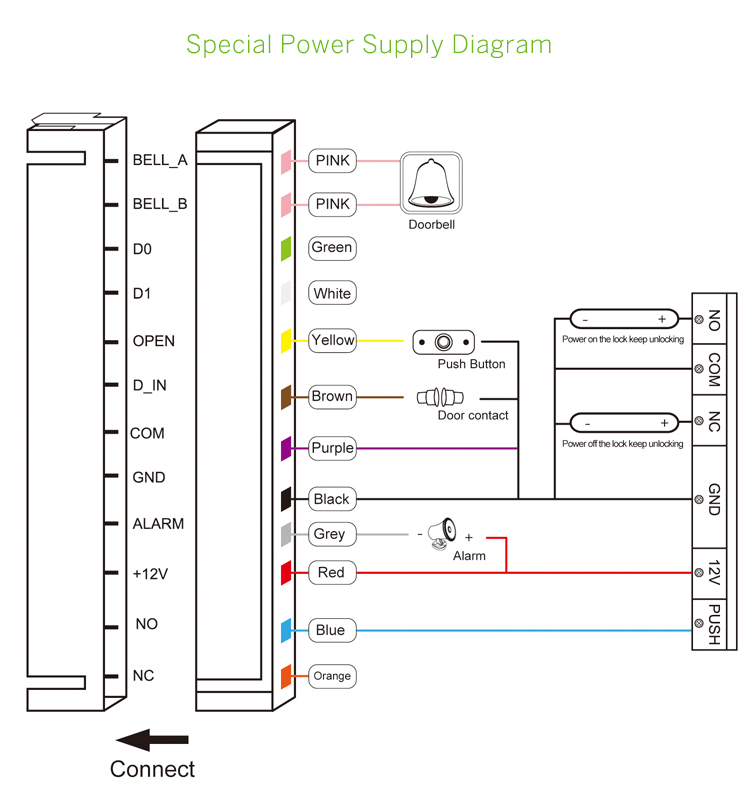

  • Diagram
Product ParameterParameter Description
JINYINGModelK5
Product NameMetal Access Control Keypad

Card typeEM or MF
Waterproof degreeNon-Waterproof
User capacity2000 card user card, 2000 user password
Environment Humidity10%~90%
Lock output≤3A
Working voltageAC/DC 12 - 24V
Static electricity≤30mA
Alarm output≤20A
Output short circuit protection time≤100μS
Card read distance5~8cm
Ambient temperature‘-45~60
Door Opening Time0~99s(Adjustable)
Dimension110*75*25mm





JINYINGModelK5
Product NameMetal Access Control Keypad
Packing Quantity54CS/CTN
Packing Size55.5*39.9*40cm
Gross Weight30.7KG
