1Channel Tuya Wifi Switch Button Single Relay Module

1 Relay with Cover
  • Model:

    TUWRA-RF-H
  • Brand:

    JINYING
  • Parameters
  • Dimensions

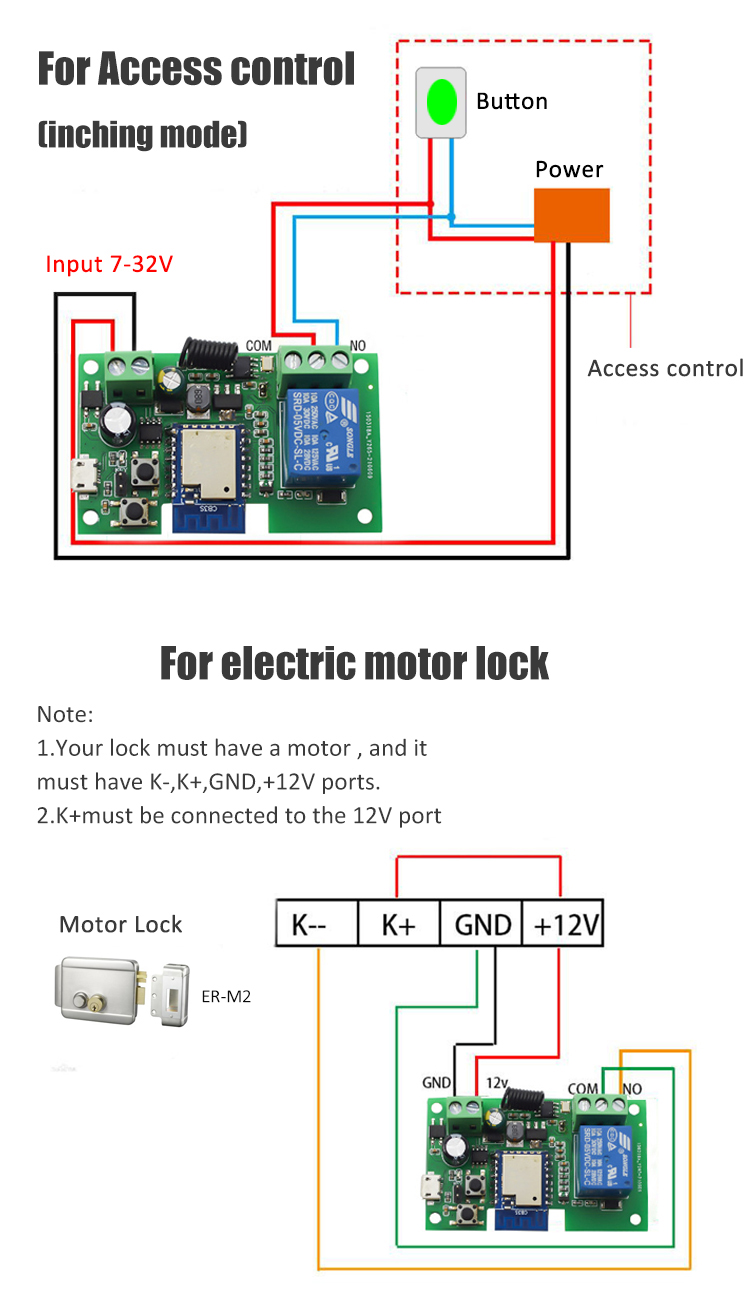

  • Diagram

WiFi Relays are equipped with firmware built into the board that will allow you to control one relay at a time, a bank of relays or all relays at once with manual and automatic refreshing command set.

WiFi Relay Controllers allow wireless computer controlled switching from any computer connected to a network.


To connect the device in AP mode, switch the light on and, after 10 seconds, switch it off and then switch it on and off continuously until it starts .

Fashing quickly (about 3 times a second). Continue switching it on and off until it starts to . Fash slowly (about once every 3 seconds).


Product ParameterParameter Description
JINYINGModelTUWRA-RF
Product Name1CH Tuya Wifi Switch Button Single Relay Module

Input5V MicroUSB/ DC 5 - 24V
Output10A Max,1 gang
Item weight35g
WIFIIEEE 802.11 b/g/n 2.4GHz
Frequency433.92Mhz(Without remote control)
Information transmissionvoice
Network4G
Frequency band2.4G
ConnectionWIFI
