WK2 IP65 Wireless Keypad Reader

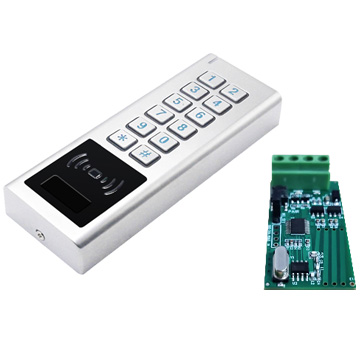

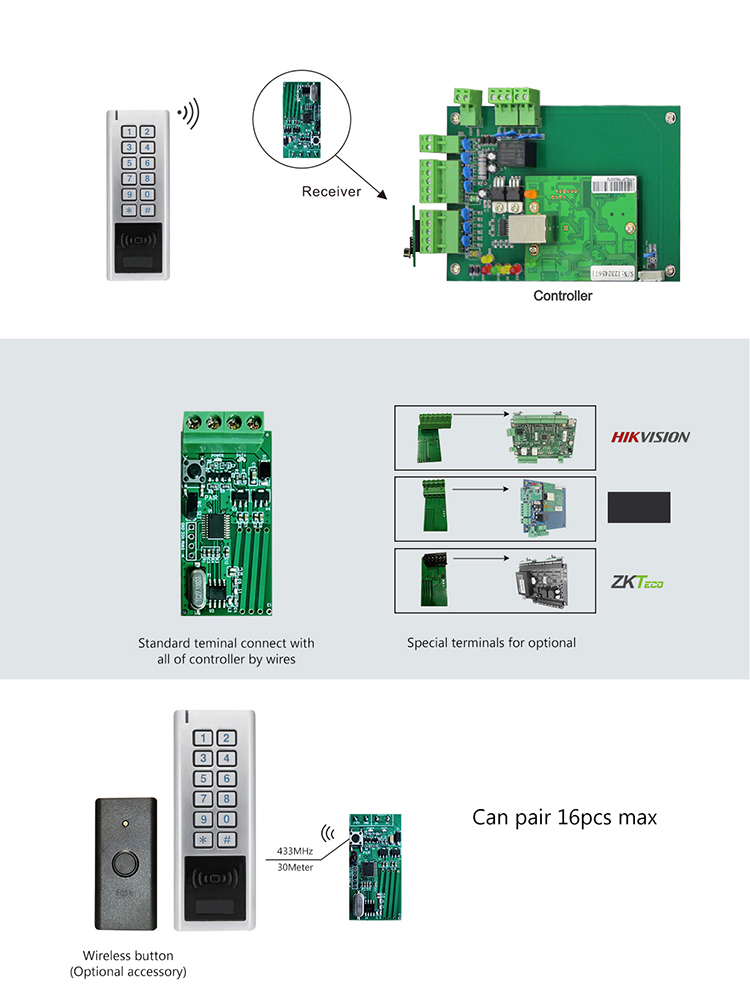

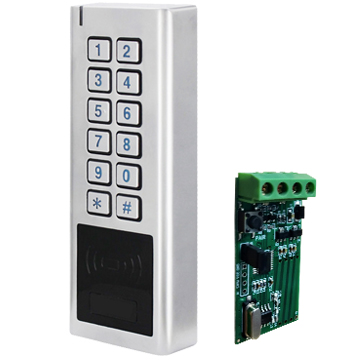

WK2 is a Metal & Waterproof Wireless Keypad & EM Card Reader , including the Wireless Keypad and Receiver, it's 433MHz Rolling code communication between the keypad and receiver, and the receiver can be connected to any 3rd party Wiegand controller.

  • Model:

    WK2

  • Brand:

    JINYING
Inquiry now
  • Parameters
    •

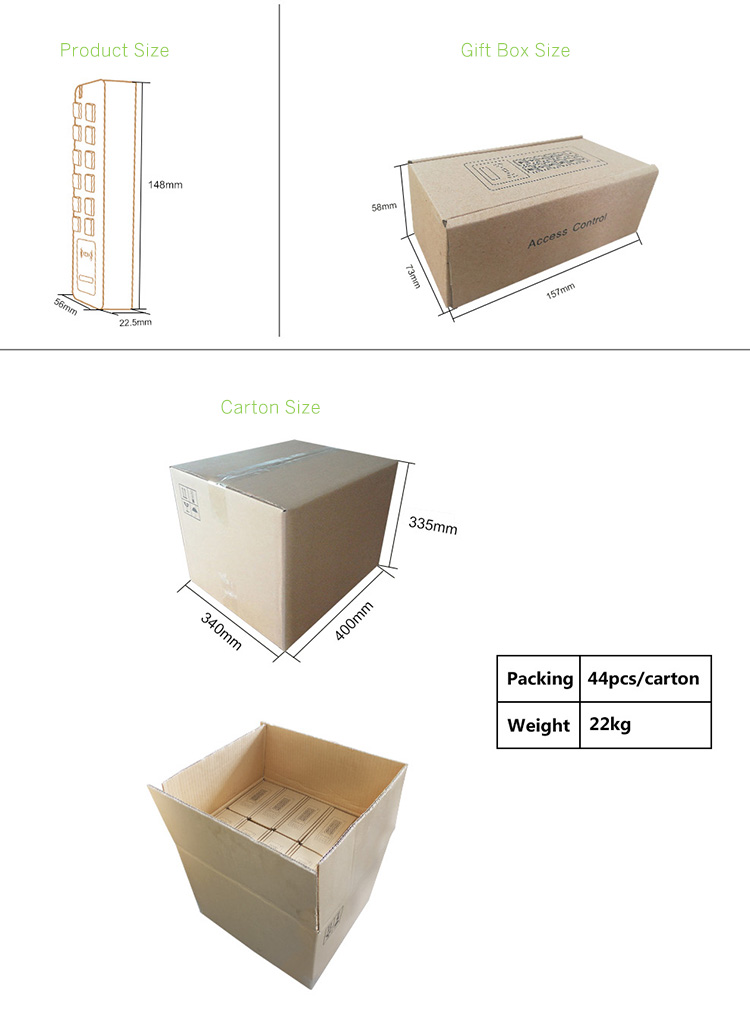

  • Dimensions
    •

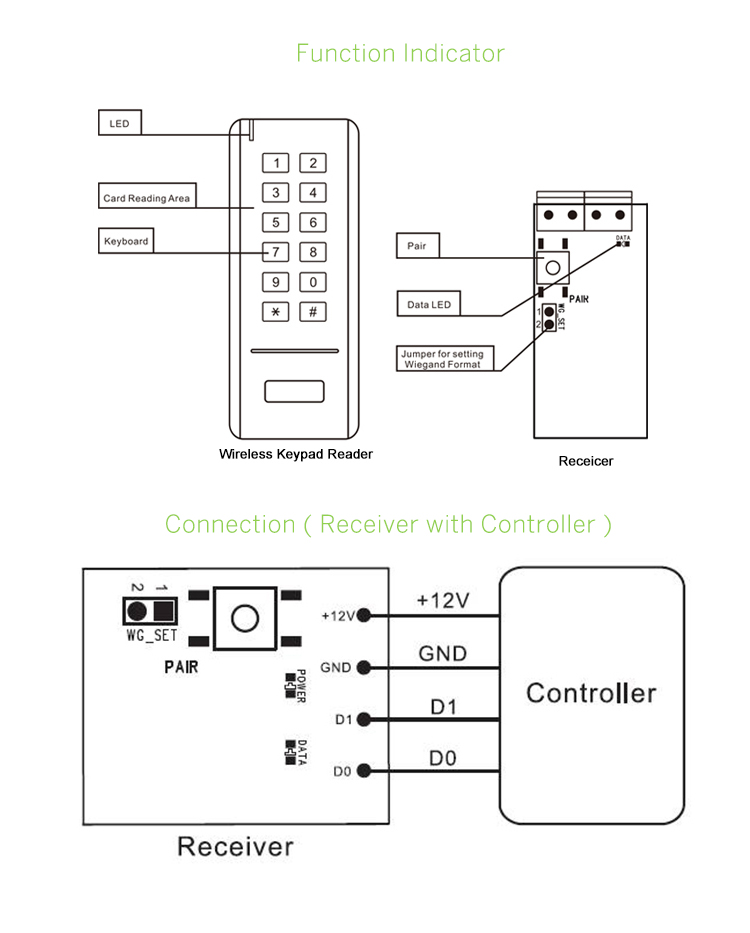

  • Diagram
    •

WK2
IP65 Wireless Keypad Reader



> Metal design, anti-vandal
> Waterproof, conforms to IP65
> 433MHz Rolling Code technology
> PIN Length: 1-6 digits
> Card Type: 125KHz EM card or 13.56MHz MF card
> Programmable Wiegand output of the Receiver: 26 bits or 34 bits
> Communication distance: 30m maximum
> Ultra low power consumption


Wireless Keypad Reader
PIN Length1-6 digits
Card Type125KHz EM card
Operating Voltage3 units of AAA batteries
Idle Current≤5uA
Working Current≤45mA
Reading Distance≤75px
Communication Frequency433MHz
Communication Distance30m Maximum
Operating Temperature-20°C～+60°C (-4°F～+140°F)
Operating Humidity0%～86%
PhysicalZinc-Alloy
DimensionsL148 * W56 * H22.5 (mm)
Net Weight250g
Receiver
Operating Voltage12V DC
Working Current≤15mA
Communication Frequency433MHz
Wiegand Output Format26 bits Or 34 bits (Default is 26 bits)
Operating Temperature-20°C～+60°C (-4°F～+140°F)
Operating Humidity0%～86%
DimensionsL25 * W50 (mm)
Net Weight10g
Wireless Button
Operating Voltage1unit of 2023 Lithium battery
Idle Current≤2uA
Working Current≤20mA
Communication Frequency433MHz
Communication Distance20m Maximum








Product Brochure


User Manual
