WB1 Wireless Exit Button ( Dry Contact )

  • Model:

    WB1
  • Brand:

    JINYING
  • Parameters
  • Dimensions
  • Diagram

It is a 433MHz wireless exit button, with 1 million groups of rolling code encryption, secure and reliable.


2 versions are available:

Wet contact control - no isolation to the circuit, control current ≤3A.

Dry contact control - with isolation circuit, control current ≤5A, can connect with household electrical appliances or lock to control directly.

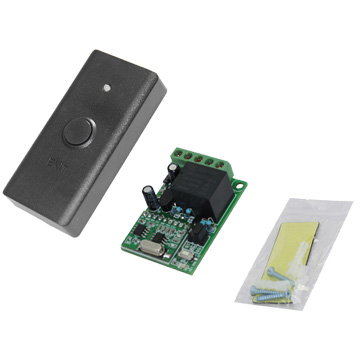

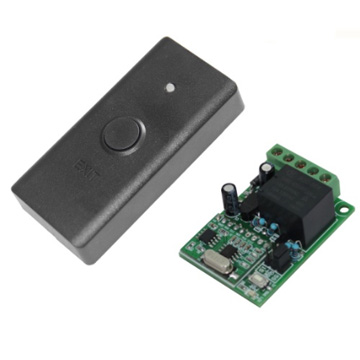

WB1 - Dry Contact Wireless Exit Button


> 433MHz Rolling Code Technology

> Easy installation by 3M stickers

> 2032 lithium battery operated

> Dimension: 4.0W x 8.3L x 1.5D (cm)

> Control current < 5A


Product ParameterParameter Description
JINYINGModelWB1
Product NameWireless Exit Button ( Black color )

Operating Voltage
Wireless Exit Button2032 3V Li-battery

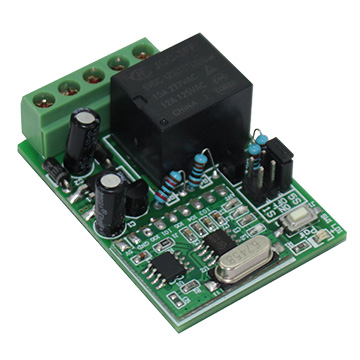

Control panel       DC 12
Current
Idle CurrentWireless Exit Button: < 5uA; Control Panel: < 20mA
Working CurrentWireless Exit Button: < 8mA; Control Panel: < 60mA
Communication Frequency433MHz
Communication DistanceAbout 50m
Relay Contact Load< 5A
Environment
Operating Temperature-20oC ~ +60oC
Operating Humidity0% ~ 86%
