Model:
SF3Brand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | SF3 |

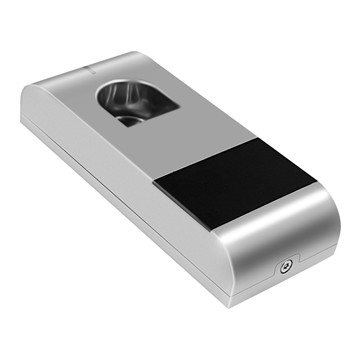

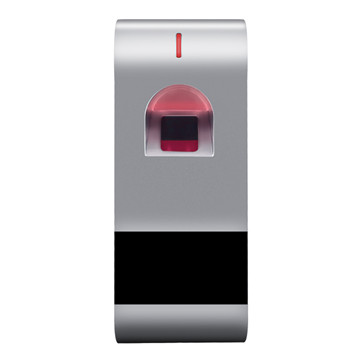

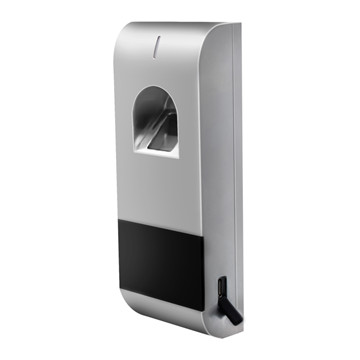

| Product Name | Waterproof Fingerprint Access Control |
| User Capacity | 3000 |
| Fingerprint | 1000 |
| Card | 2000 |
| Operating Voltage | 12V DC |
| Idle Current | < 45mA |
| Proximity Card Reader | EM |
| Radio Technology | 125KHz Proximity Card |
| Read Range | 1~4 cm |
| Fingerprint Reader | Optical Fingerprint Module |
| Resolution | 500DPI |
| Identification time | <1s |
| FAR | <0.001% |
| FRR | <0.01% |

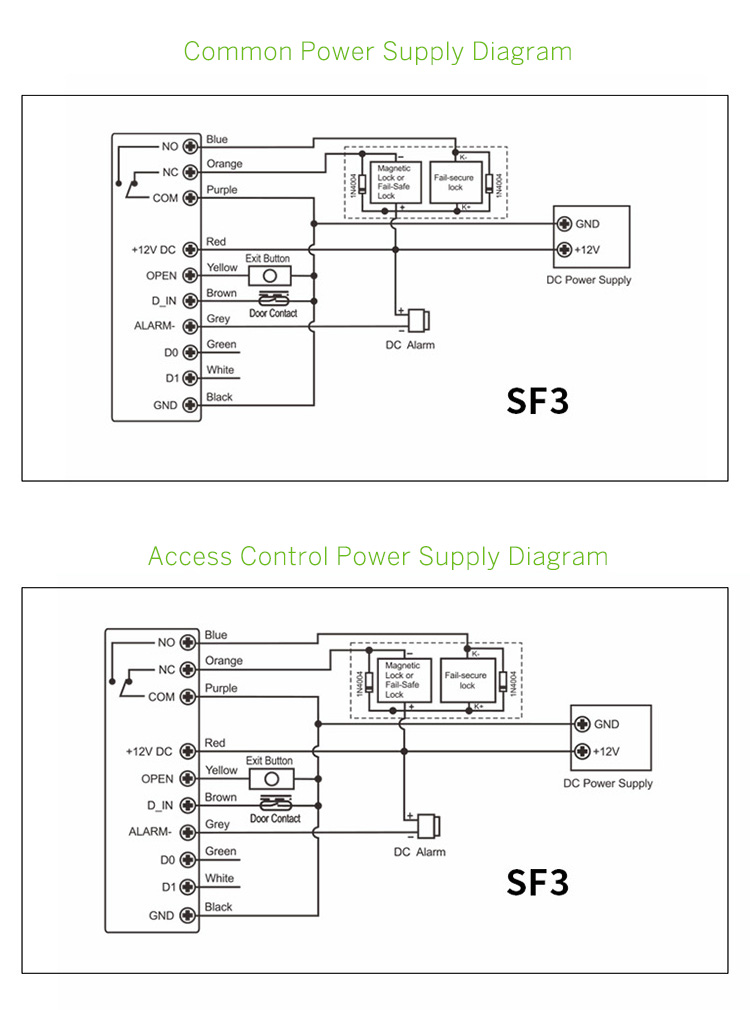

| Wiring Connections | Relay output, exit button, alarm, door contact, Wiegand output |
| Relay | One (NO, NC, Common) |
| Adjustable Relay Output Time | 0~99 Seconds (5 seconds default) |
| Lock Output Load | 2 Amp Maximum |
| Wiegand Interface | Wiegand 26~44bits output |
| Environment | Meets IP66 |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F)--Default -40°C ~ 60°C (-40°F ~ 140°F)--Optional |
| Operating Humidity | 10%RH ~ 99%RH |
| Physical | Zinc-Alloy |
| Color | Silver |

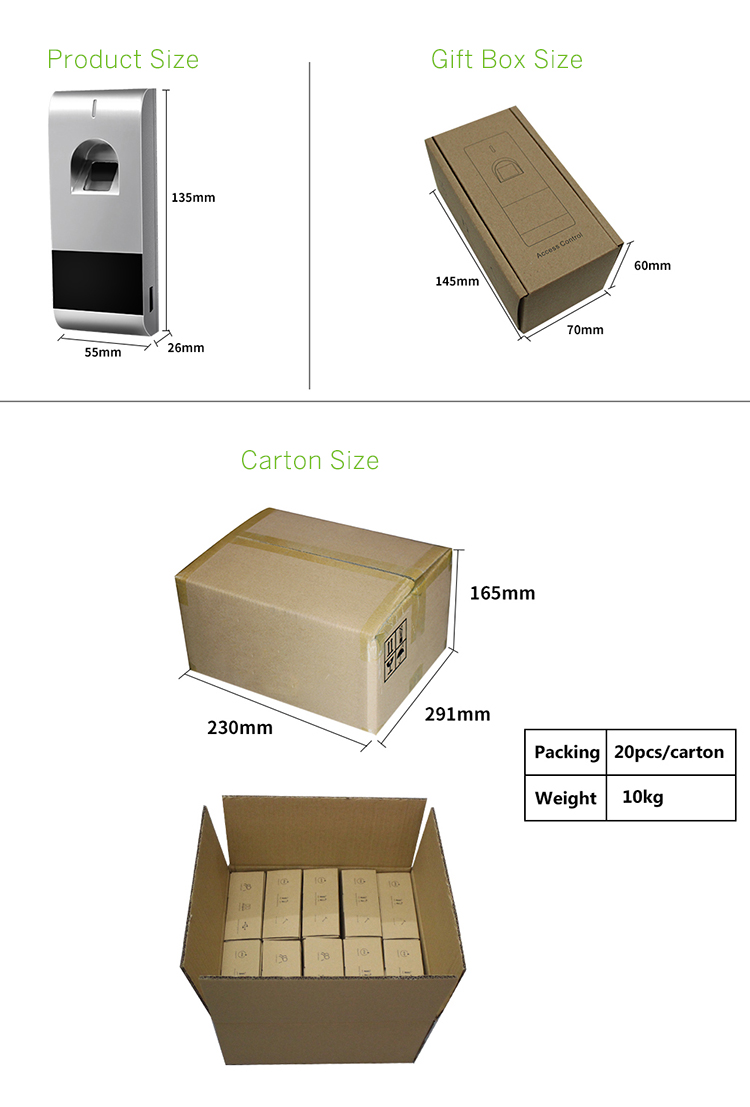

| Dimensions | L135 x W55 x H26 (mm) |
| Unit Weight | 0.5KG |
| Standard Package | 20PCS |
| Carton Weight | 10KG |
| Carton Size | 23*30*16.5(cm) |
