Feature:
> Metal case, anti-vandal

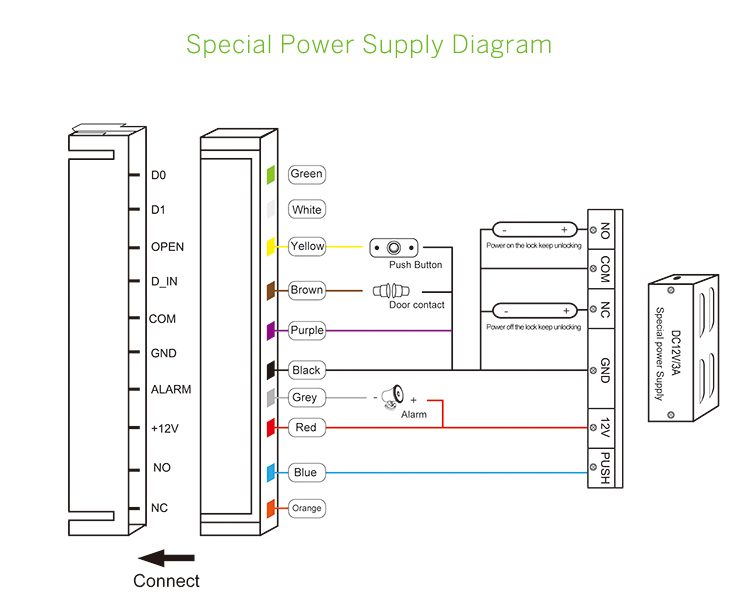

> Fingerprint access controller and reader, WG26 Input/output
> Capacity: 200 fingerprints and 500 cards
> Two accesses: card, fingerprint
Specificaiton:
| Product Parameter | Parameter Description |
| JINYINGModel | F3 |
| Product Name | Metal & Waterproof Fingerprint Access Control |
|
| Card type | EM 125KHz |
| User Capacity | 10,000 users |
| Fingerprint Capacity | 200 |
| Working voltage | DC12V±10% |
| Reading Range | 3-6cm |
| Humidity | 20% to 90% RH |
| Door Opening Time | 0-99s(Adjustable) |
| Sleep electricity | ≤30mA |
| Static electricity | ≤80mA |
| Electric lock output | ≤3A |
| Short-circuit Protect | ≤100μS |

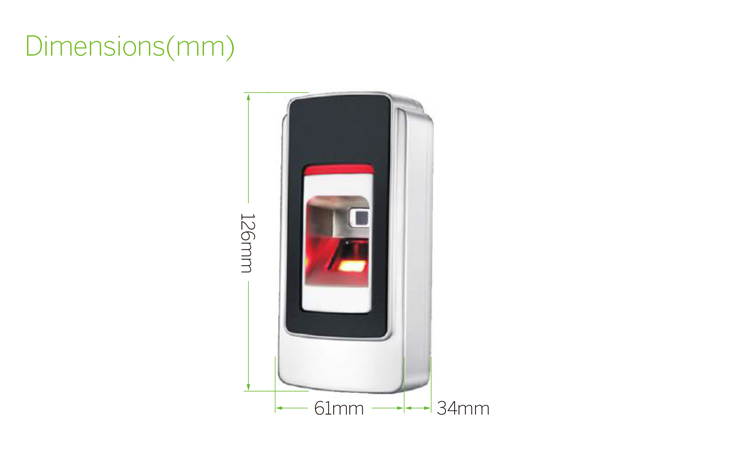

| Dimensions | 126x61x34mm |
