| Product Parameter | Parameter Description |
| JINYINGModel | S500 |

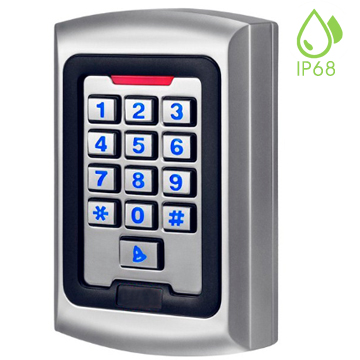

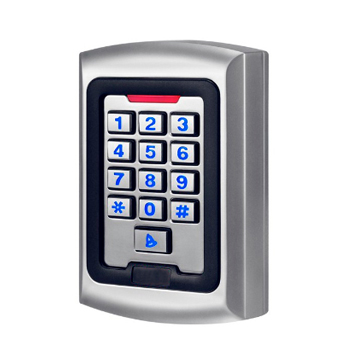

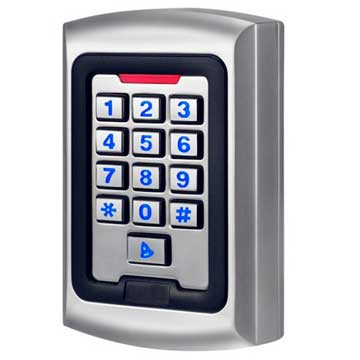

| Product Name | Metal Waterproof Access Control Keypad |
| Card type | EM or MF |
| Waterproof degree | IP68 |
| User capacity | 2000 card user card, 2000 user password |
| Environment Humidity | 10%～90% |
| Lock output | ≤3A |
| Working voltage | DC12V±10％ |
| Static electricity | ≤30mA |
| Alarm output | ≤20A |
| Output short circuit protection time | ≤100μS |
| Card read distance | 5~8cm |
| Ambient temperature | ‘-45℃~60℃ |
| Door Opening Time | 0~99s(Adjustable) |

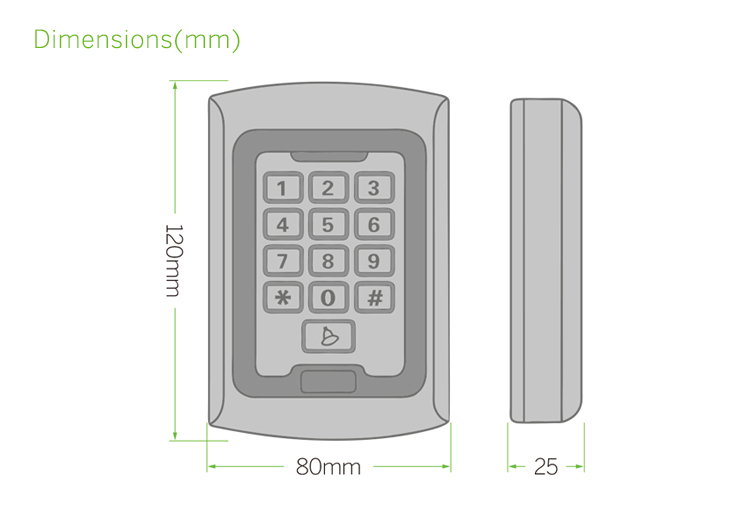

| Dimension | 120*80*25mm |
| JINYINGModel | S500 |
| Product Name | Metal Access Control Keypad |
| Packing Quantity | 54CS/CTN |
| Packing Size | 55.5*39.9*40cm |
| Gross Weight | 34.5KG |
