Model:
K9-RBrand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | K9-R |
| Product Name | Metal Standalone Access Controller support Remote Control |
| User Capacity | 1000 Cards/PINS (990 Normal Users + 10 Visitor Users) |
| Operating Voltage | 9~18V DC |
| Idle Current | 50mA |
| Active Current | 80mA |
| Keypad | 12 Key (3*4) |
| Proximity Card Reader | EM |
| Radio Technology | 125 KHz Industry Standard Proximity Card |
| Read Range | 2-6 cm |

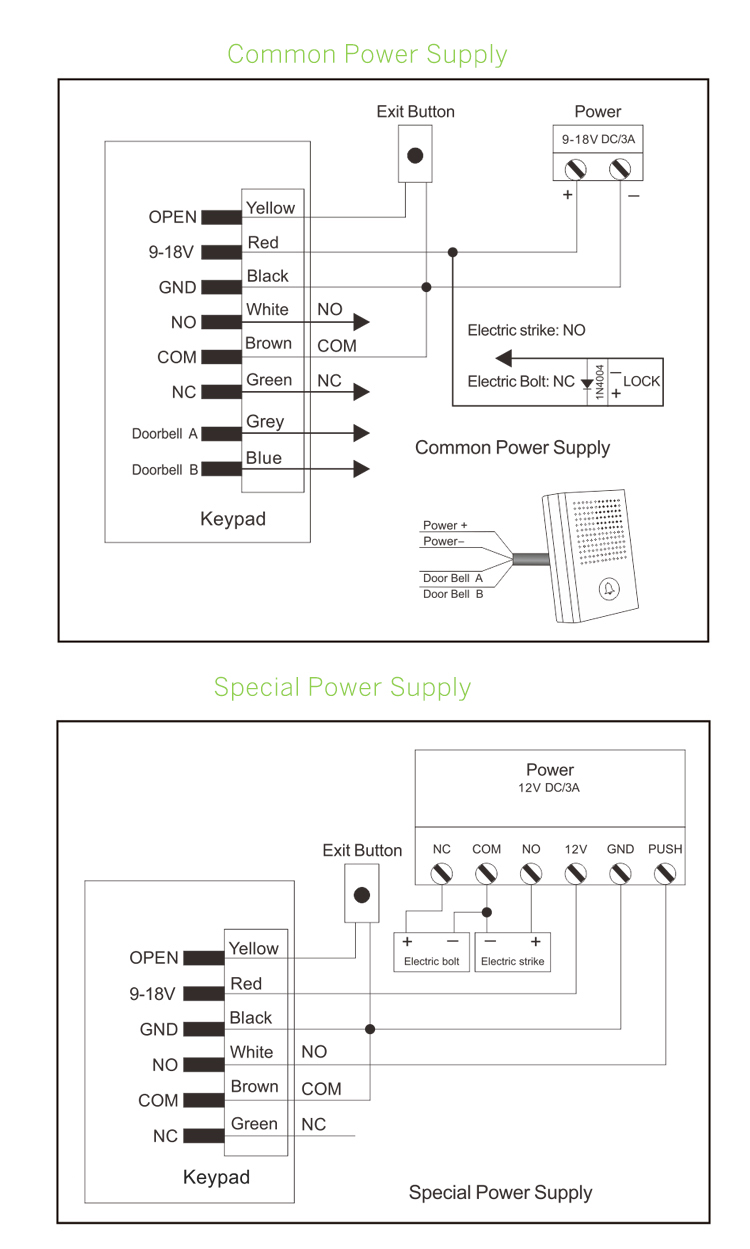

| Wiring Connections | Relay Output, Exit Button |
| Relay | One (NO, NC, Common) |
| Adjustable Relay Output Time | 0-99 Seconds (5 seconds default) |
| Lock Output Load | 3 Amp Maximum |
| Environment | Outdoor |
| Operating Temperature | -40°C~ 60°C (-40°F ~ 140°F) |
| Operating Humidity | 10%RH-90%RH Non-Condensing |
| Physical | Zinc-Alloy Enclosure |
| Surface Finish | Powder Coat |

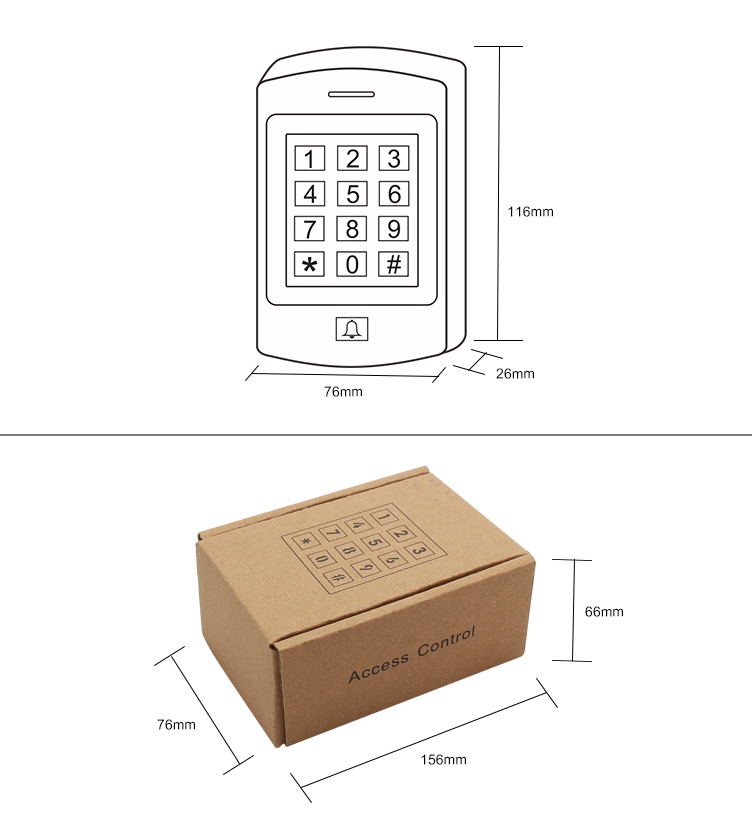

| Dimensions | 11.6L x 7.6W x 2.6H (cm) |
| Unit Weight | 600g |
| Shipping Weight | 700g |
