Model:
F99Brand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | F99 |

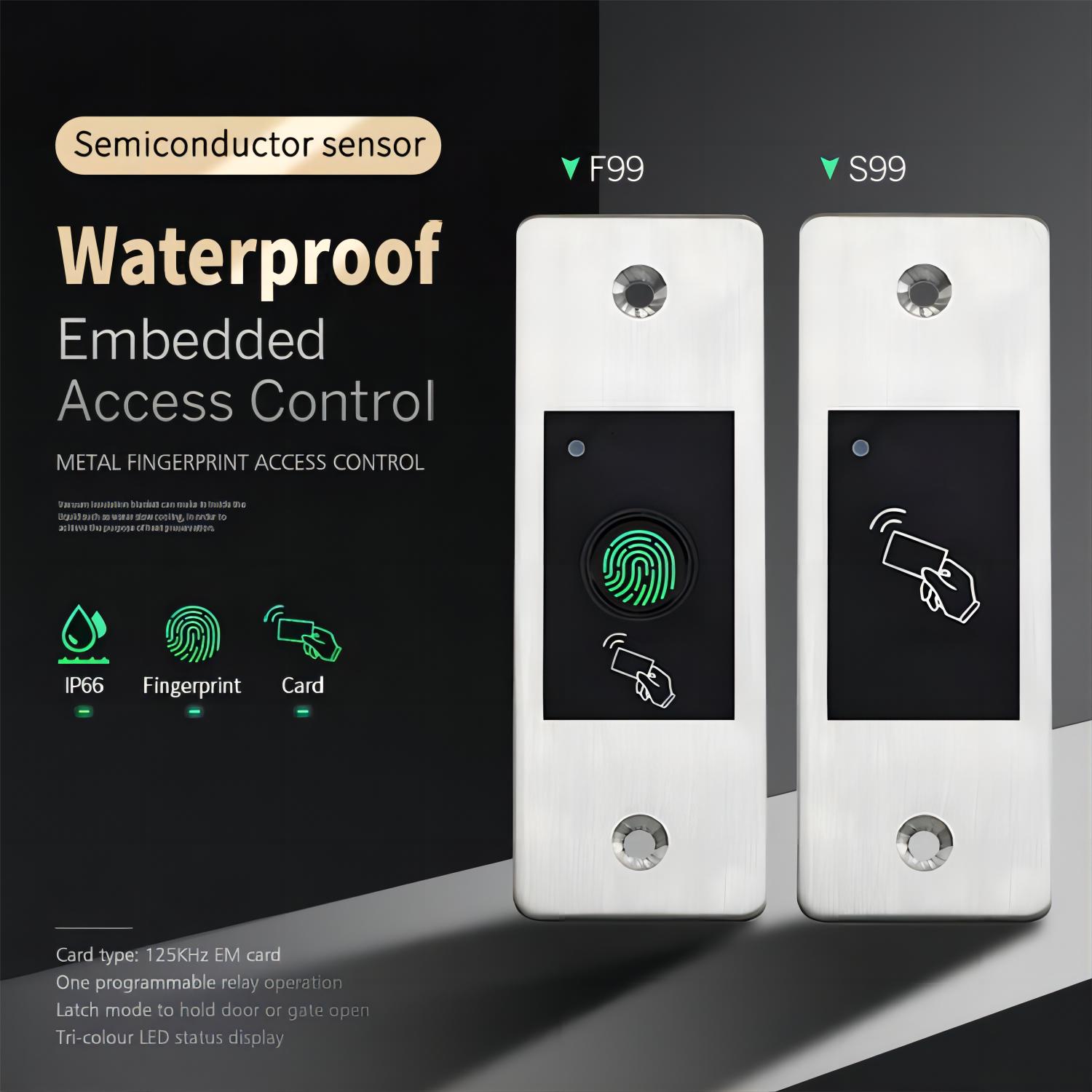

| Product Name | JINYINGMini Metal IP66 Waterproof Fingerprint Standalone Controller support 800 Finger and 3000 Cards |
| User Capacity | 800 Fingerprints and 3000 Cards |
| Operating Voltage | DC9~24V |
| Idle Current | ≤25mA |
| Active Current | ≤100 |
| Proximity Card Reader | EM |
| Radio Technology | 125KHz Proximity Card |
| Read Range | 50px |
| Wiring Connections | Relay Output, Exit Button |
| Relay | One (NO, NC, Common) |
| Adjustable Relay Output Time | o-99 seconds (5 seconds default) |
| Lock Output Load | 2 Amp Maximum |
| Environment | Meets lP66 |
| Operating Temperature | -25℃~60℃ (-13°F ~140°F) |
| Operating Humidity | 20%RH-98%RH |
| Physical | Zinc-alloy plate |
| Colour | Silver |

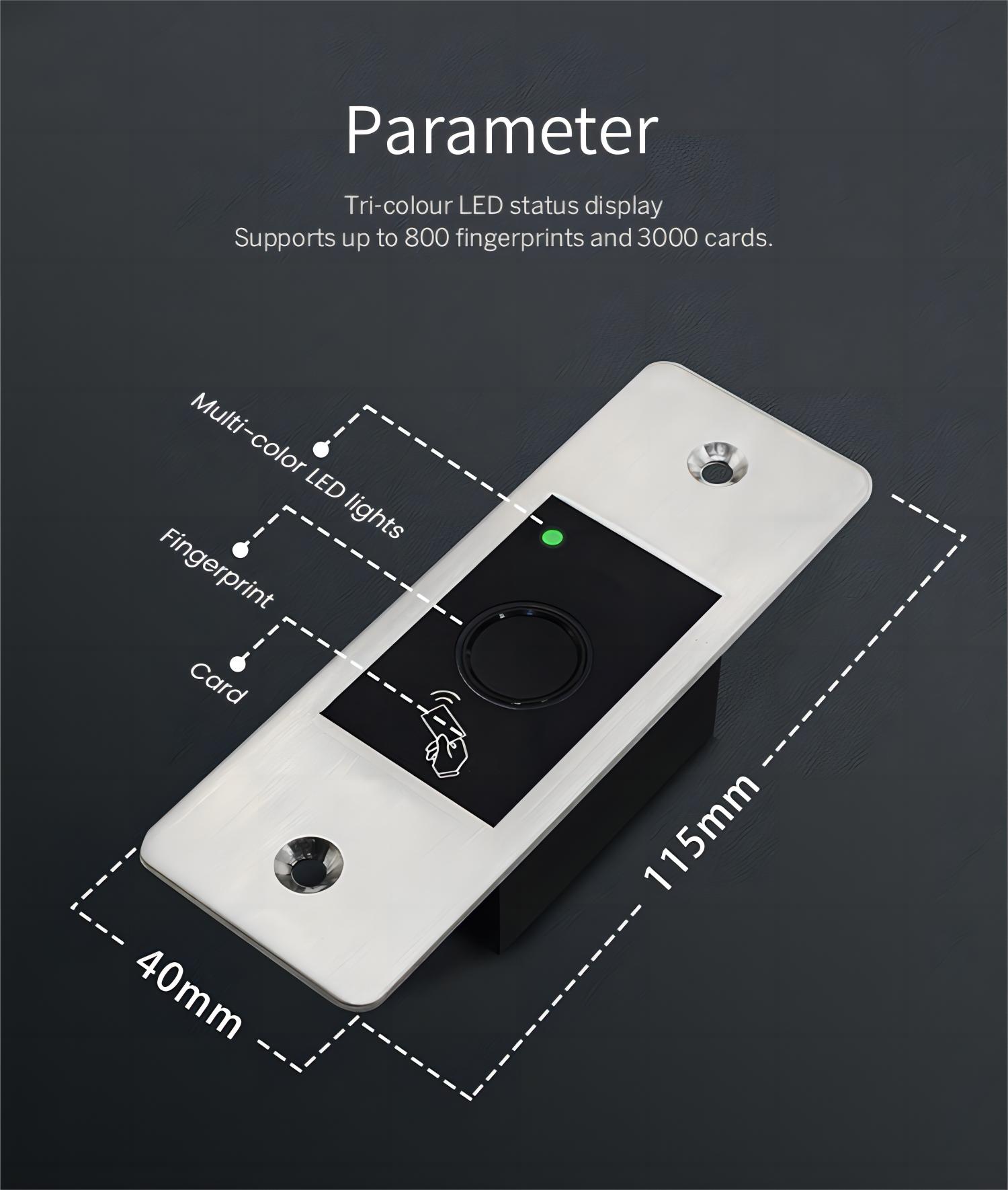

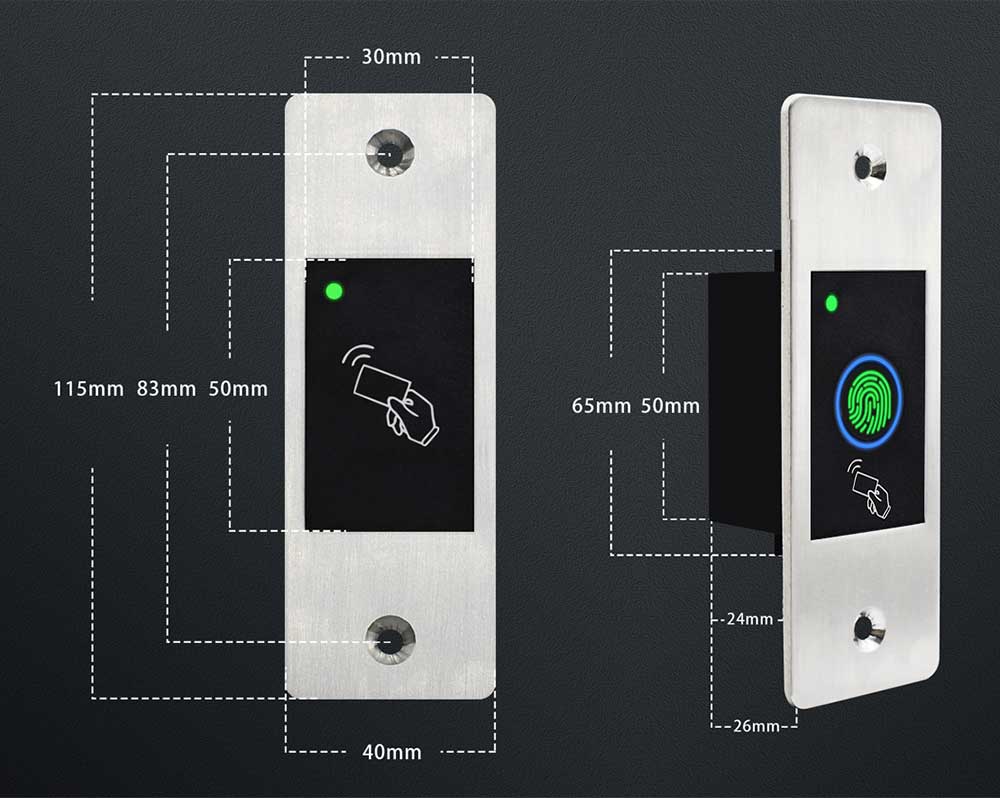

| Dimensions | L115xW40xH30mm |
