Model:
E3Brand:
JINYING| Product Parameter | Parameter Descr1ption |
| JINYINGModel | E3 |
| Product Name | Embedded RFID Access Control |
| User Capacity | 2000 |
| Card | EM Card |
| Operating Voltage | 12~24V DC |
| Idle Current | < 50mA |
| Proximity Card Reader | EM |
| Radio Technology | 125KHz |
| Read Range | 0~150px |

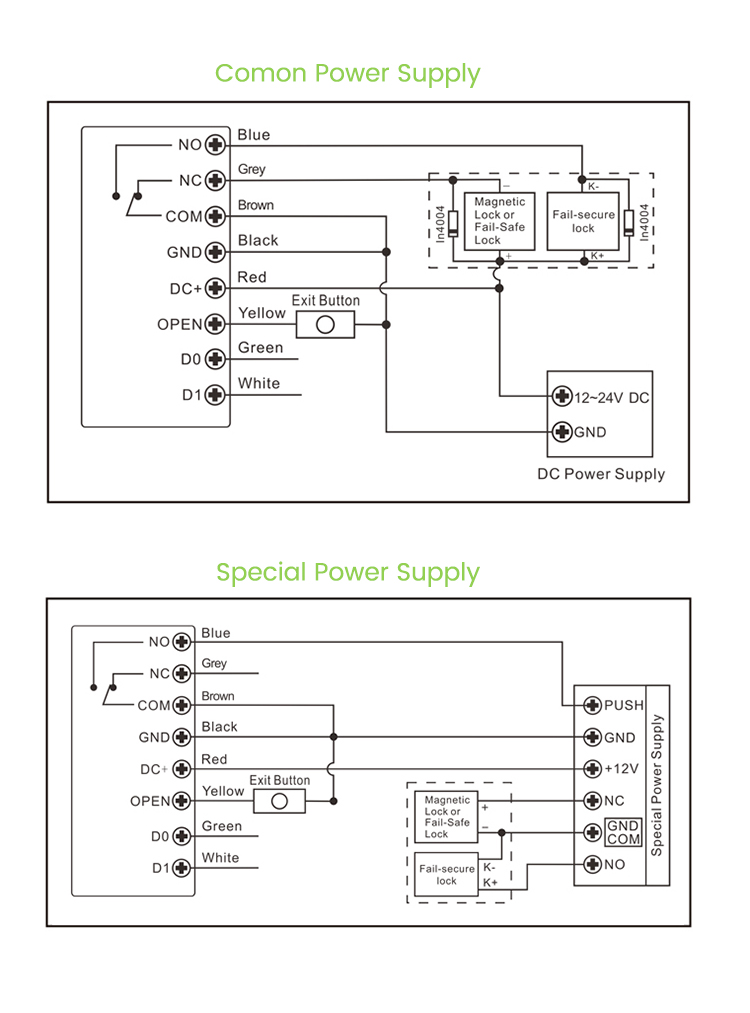

| Wiring Connections | Relay output, exit button, wiegand(in&out) |
| Relay | One (NO, NC, Common) |
| Adjustable Relay Output Time | 0-99 Seconds (5 seconds default) |
| Lock Output Load | 2 Amp Maximum |
| Environment | Meets IP66 |
| Operating Temperature | -40 oC ~ 60 oC (-40 oF ~ 140 oF) |
| Operating Humidity | 20% RH ~ 98% RH |
| Physical | Stainless Steel Plate |
| Color | Silver & Black |

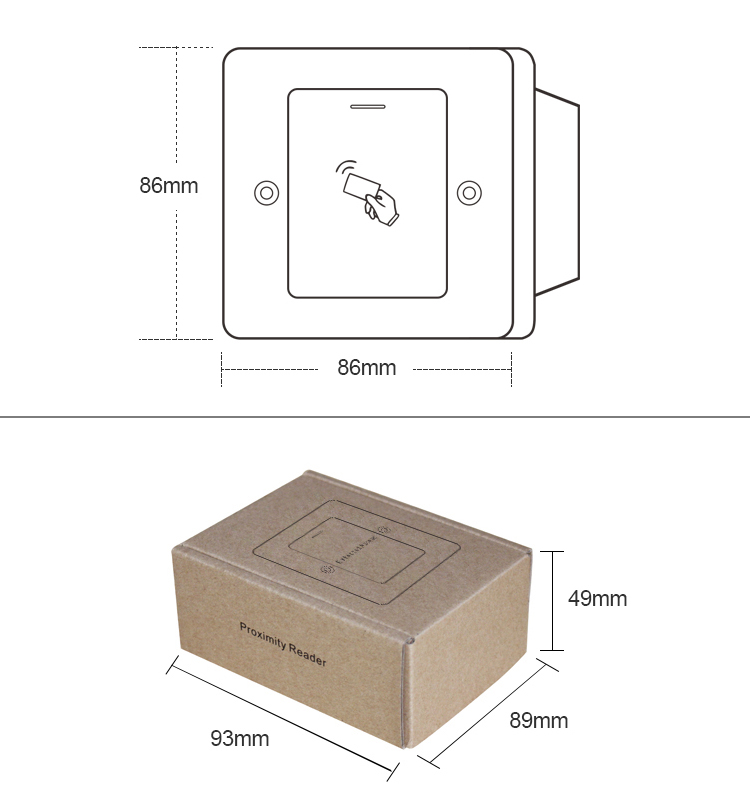

| Dimensions | 86x86x25mm |
| Unit Weight | 230g |
| Shipping Weight | 270g |
