| Product Parameter | Parameter Description |
| JINYINGModel | MT60 |
| Product Name | Large Capacity RFID Access Control |
| Operating Voltage | DC 12-24V |
| Operating Humidity | 0%~95% |
| Door Relay Time | 0～99s(adjustable) |
| Standby Current | ≤35mA |
| Operating Temperature | -20℃~60℃ |
| Maximum Rated Current | ≤1A |
Feature:
| Card Type | Read 125KHz EM Card |
| Keypad Characteristic | Operate by infrared remote control |

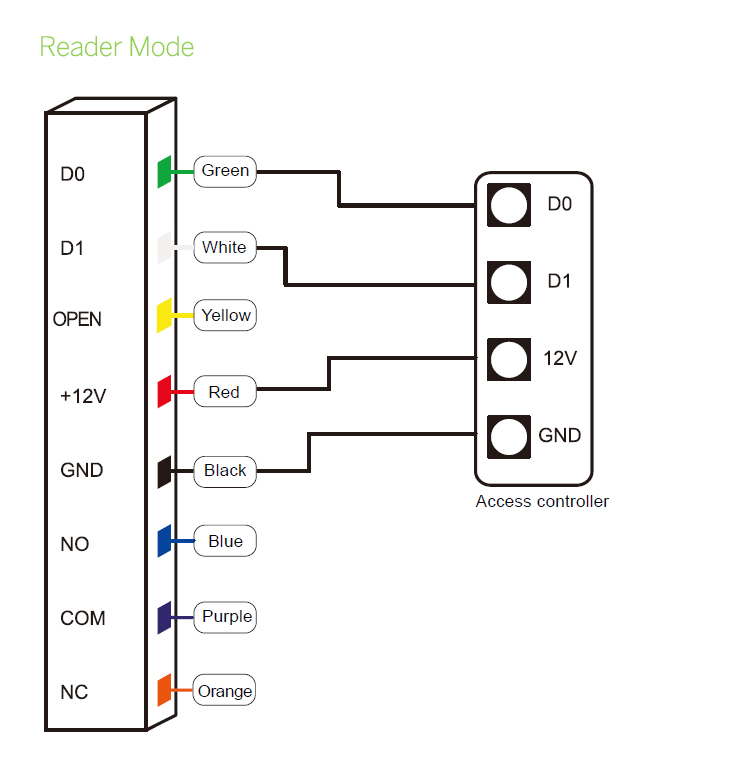

| Output Way | Contains reader mode, the transmission format could be adjusted by users. |
| Admin Card | Support admin add card, admin delete card and setting card |
| User Capacity | 10,000 card users |

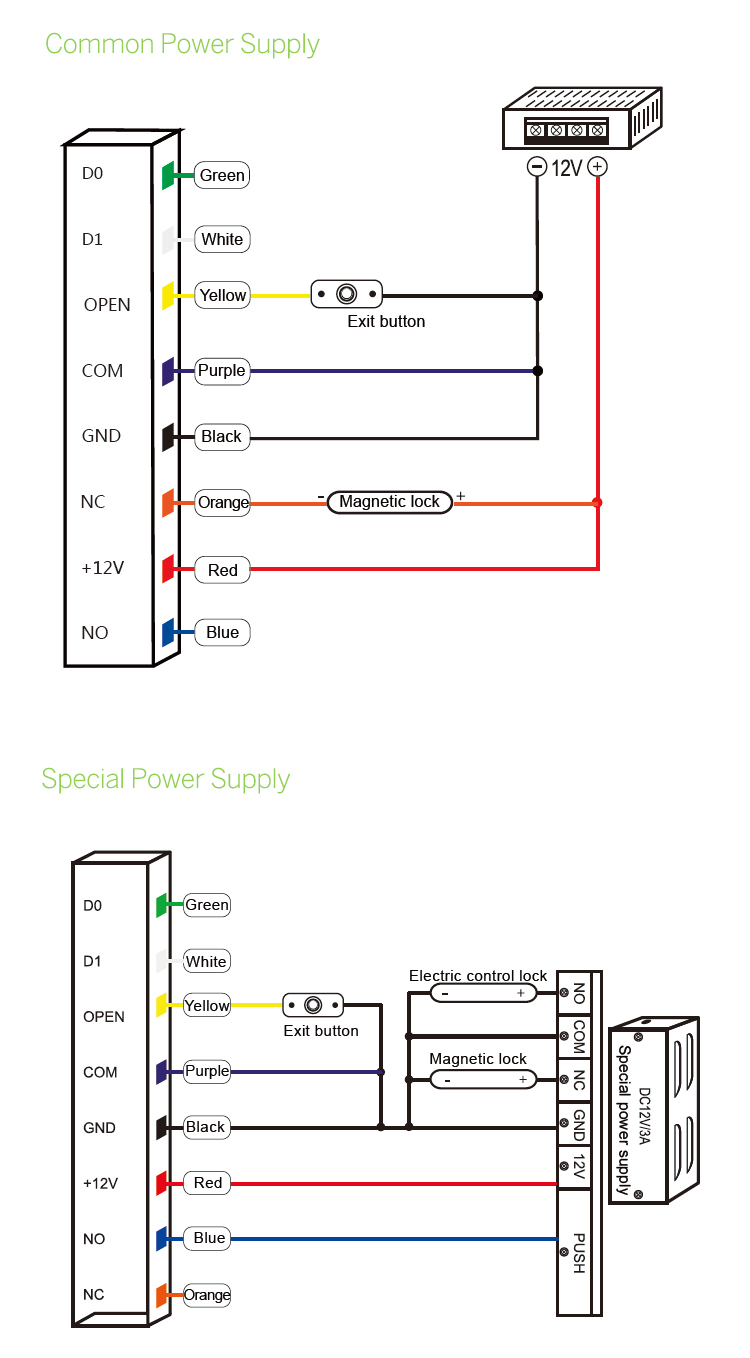

| Unlocking signal | The unlocking signal adopts NO,NC,COM output of relay |
