Model:
S1-EMBrand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | S1-EM |
| Product Name | Metal Standalone Access Control |
| User Capacity | 2000 |
| Card | EM card |
| Operating Voltage | 9~24V DC |
| Idle Current | < 40mA |
| Proximity Card Reader | EM |
| Radio Technology | 125KHz proximity card |
| Read Range | 3~250px |

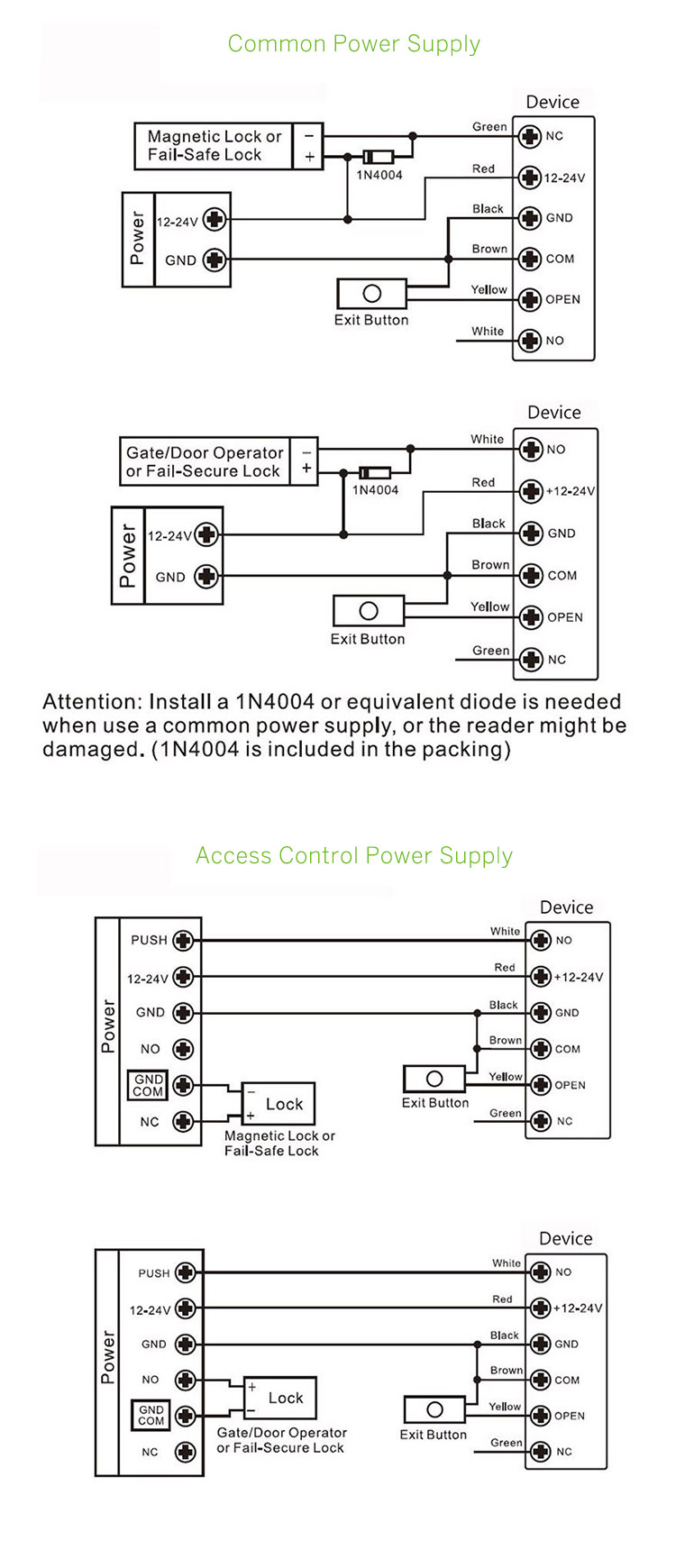

| Wiring Connections | Relay output, exit button |
| Relay | One (NO, NC, Common) |
| Adjustable Relay Output Time | 0-99 Seconds (5 seconds default) |
| Lock Output Load | 2 Amp Maximum |
| Environment | Meets IP66 |
| Operating Temperature | -40 oC ~ 60 oC (-40 oF ~ 140 oF) |
| Operating Humidity | 20% RH ~ 98% RH |
| Physical | ABS Shell |
| Colour | Black |

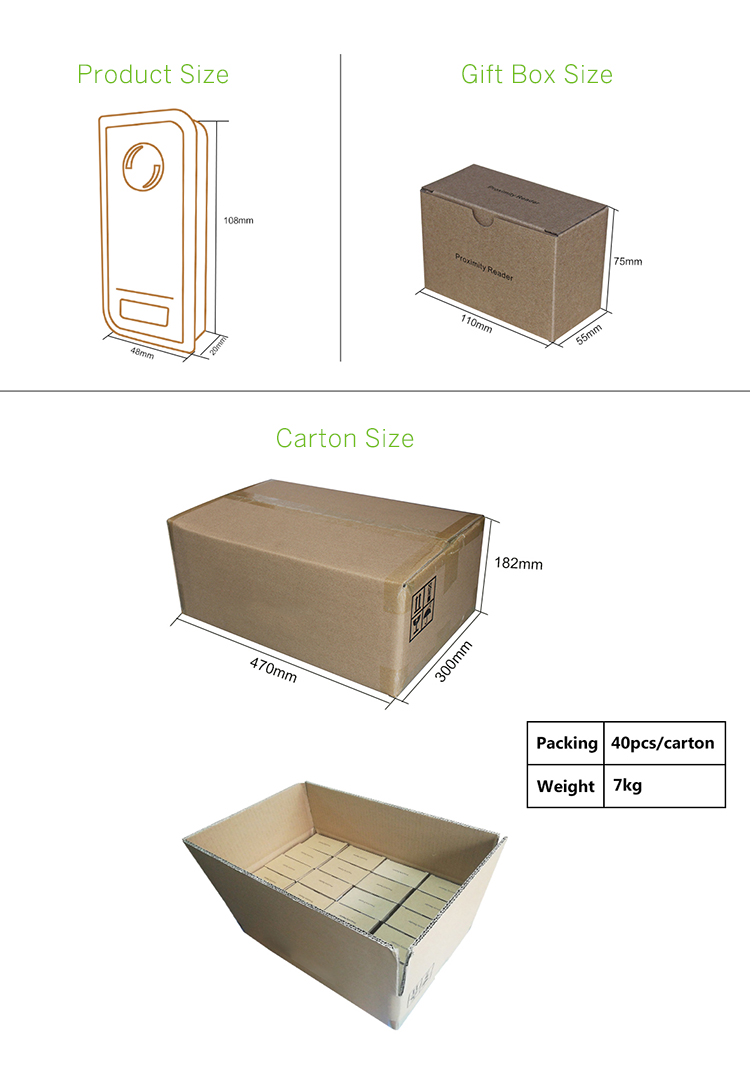

| Dimensions | 10.3L x 4.8W x 2.0H (cm) |
| Unit Weight | 100g |
| Shipping Weight | 150g |
