| Product Parameter | Parameter Description |
| JINYINGModel | SA-0101 |
| Product Name | Standalone Access Controller |
| Card | EM |
| Proximity Reader Frequency | 125KHz |
| 4-digits public PIN Capacity | 1234 |
| Card Reading Distance | 5~15CM |
| RFID Card Capacity | 800 cards, a 'Personal PIN' goes alone with each card |
| Operating Voltage | 12VDC +10%; Current 1.2A |
| Lock Relay | 12VDC/2A |

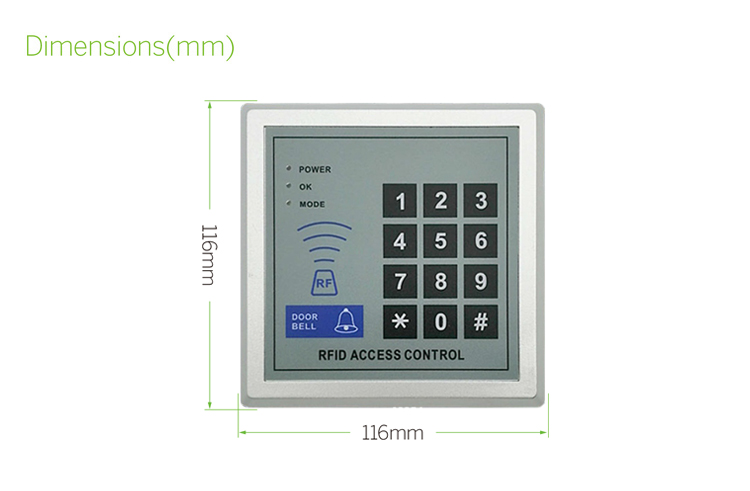

| Dimensions | 116 x 116 x 20mm |
| Environmental temperature | Working: 0℃~45℃ |
| Storage: -10℃~55℃ | |
| Relative humidity | Working: 40%~90%RH |
| Storage: -20%~90%RH | |
