| Product Parameter | Parameter Description |
| JINYINGModel | F22 |

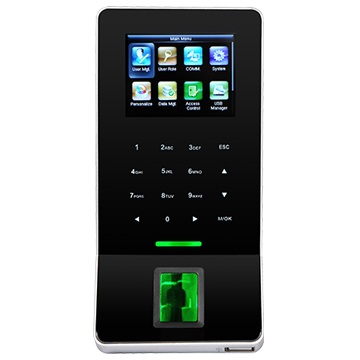

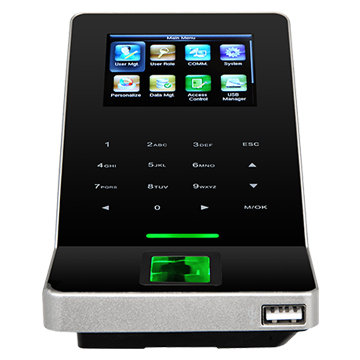

| Product Name | Fingerprint Access Control |
| Display | 2.4-inch TFT LCD Color Screen |
| Fingerprint Capacity | 3000 |
| Card Capacity | 5000(Optional) ID or IC card |
| Transaction Capacity | 30000 |
| Sensor | BioID Sensor/ SilkID Sensor (optional) |
| Algorithm Version | ZKFinger VX10.0 |

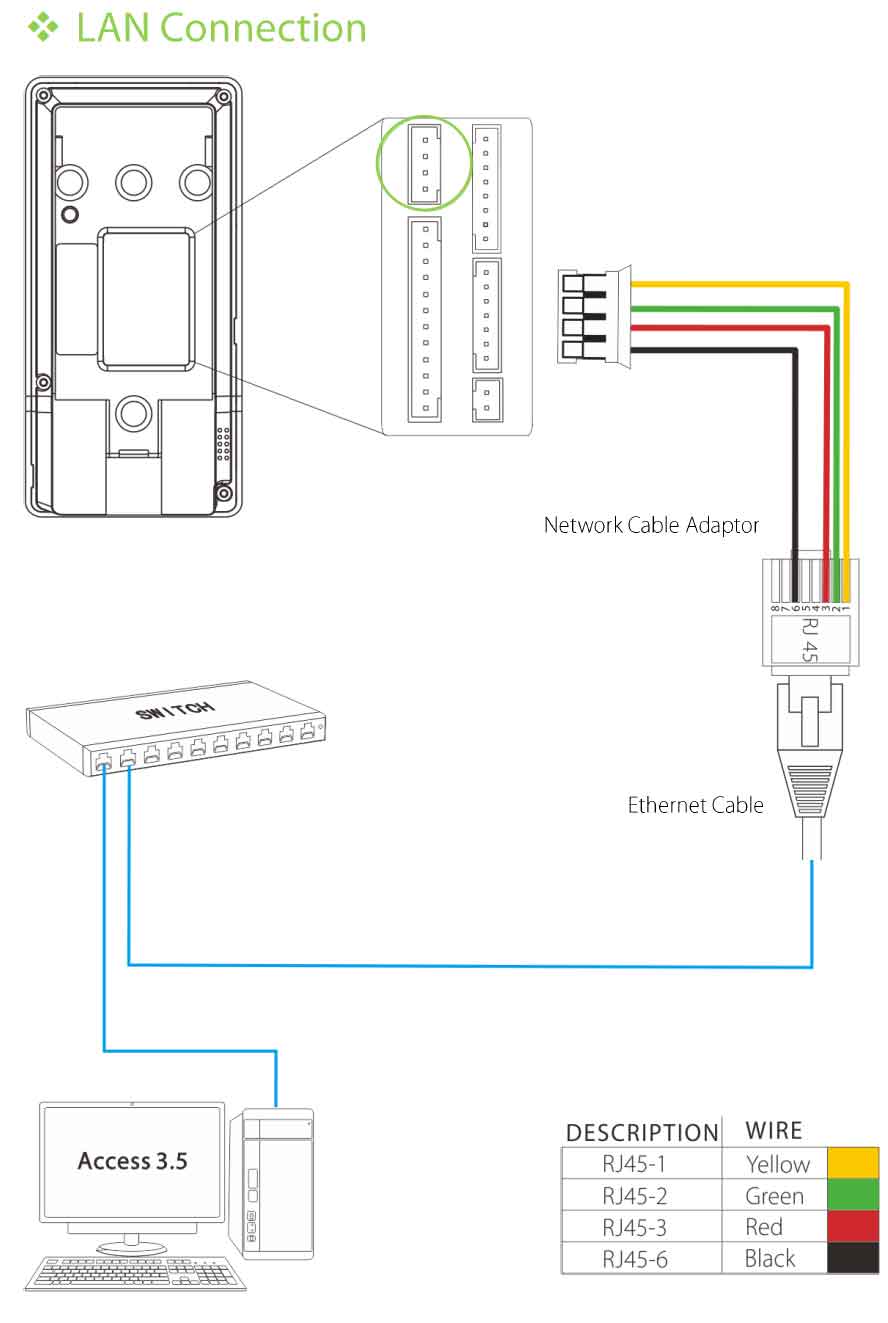

| Communication | RS232/485, TCP/IP, USB-host,Wi-Fi |

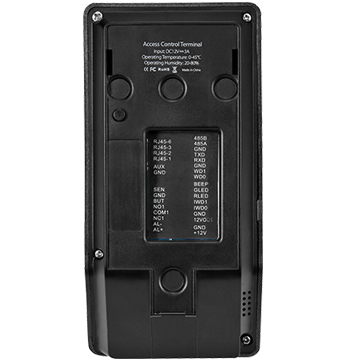

| Access Control Interface | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm |
| Wiegand Signal | Input, Output |
| Aux. Input | 1ea for linkage function |
| Functions | DST, Automatic Status Switch, Record query, T9 input, 14 digit user ID, Anti-passback, Scheduled-Bell, Printer(Optional), ADMS(Optional) |
| Power Supply | 12V DC,3A |
| Operating Temperature | 0 ℃- 45℃ |
| Operating Humidity | 20%-80% |

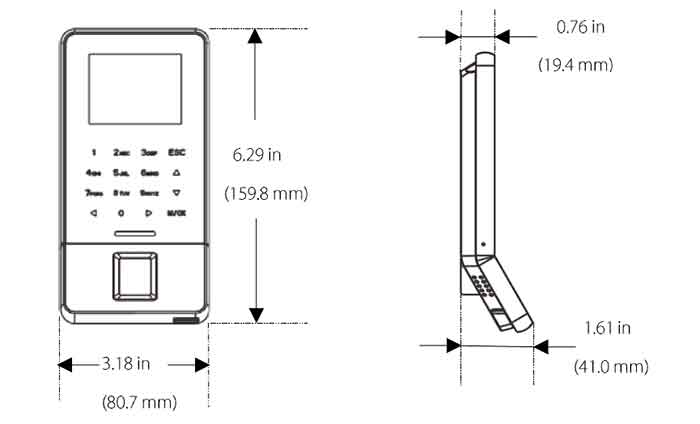

| Dimension(LxWxH) | 158.5x78.0x19.4mm |
