Model:
UHF-01Brand:
JINYING| ● Basic parameters | |
| Types | UHF passive tags |
| Working frequency | 860-960MHz |
| Protocol | ISO / IEC 18000-6C EPC Class1 Gen2 |
| ● Physical parameters | |

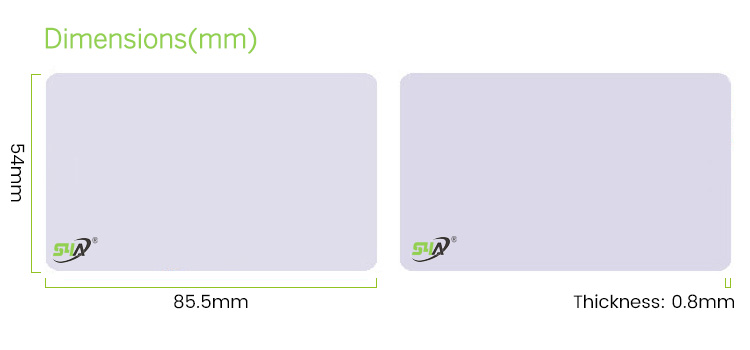

| Size | 86 * 54 * 0.9mm or customized |
| Packaging Materials | PVC, PET |
| Antenna | Aluminum etching antenna |
| Craft | 4C offset print,Silk screen print, Inkjet print, Foil stamp, Encoding, Punch hole,etc |
| ● Performance parameters | |
| Chip | Alien H3, impinjM4D / M4E / M4QT / M5 |
| Storage | Related to the chip |
| Operating mode | Can read and write |
| Data retention | > 10 years |
| Endurance | 100,000 times |
| Reading distance | 0-10m (the reading range is related to the working condition and reader) |
| ● Environmental parameters | |
| operating temperature | (-25 ℃ ~ + 55 ℃) |
| Storage temperature | (-35 ℃ ~ + 75 ℃) |
| ● Typical applications | |
| Applications | Identification,Attendance System,Access control system,Membership management,Toll collect system |
| ● Package | |
| Packaging Information | 200pcs / box |
| JINYINGModel | UHF-03 |
| Packing Quantity | 5000 PCS/CTN |
| Packing Size(L*W*H) | 51*22*34 (cm) |
| Gross Weight | 33.2KG |
