UHF-03 RFID UHF Reader Windshield Tags EPC Class 1 Gen 2 RFID Long Range Windshield Tag

Default:7896(U8) ,Option: 4695(R6P) or H3(9654) Chip

Inquiry now

Parameters

Dimensions

Diagram

● Basic Parameters
Types	UHF passive RFID tags
Working Frequency	860-960MHz
Protocol	ISO / IEC 18000-6C EPC Class1 Gen2
● Physical Parameters
Size	110 * 45mm
Packaging Materials	PET, PVC, coated paper, PP Synthetic Paper
Antenna	Etching aluminum
Craft	4C offset printing,Print ID number, tamper blade
● Performance Parameters
Chip	Alien H3, impinjM4D / M4E / M4QT / M5
Storage	Related to the chip
Operating mode	read and write
Data Retention	> 10 years
Write Endurance	100,000 times
Reading Distance	0-15m (Related to the chip,antenna and JINYINGUHF Readers)
● Environmental Parameters
Working temperature	(-25 ℃ ~ + 55 ℃)
Storage temperature	(-35 ℃ ~ + 70 ℃)
● Typical Applications
Applications	Traffic management, highway toll collection management, vehicle access control system management,community parking system management
● Package
Packaging Information	200 Piece/BOX

Here listed different types for Windshield Tags:

UHF cards and Stickers-1.jpg

UHF cards and Stickers-2.jpg

UHF cards and Stickers-3.jpg

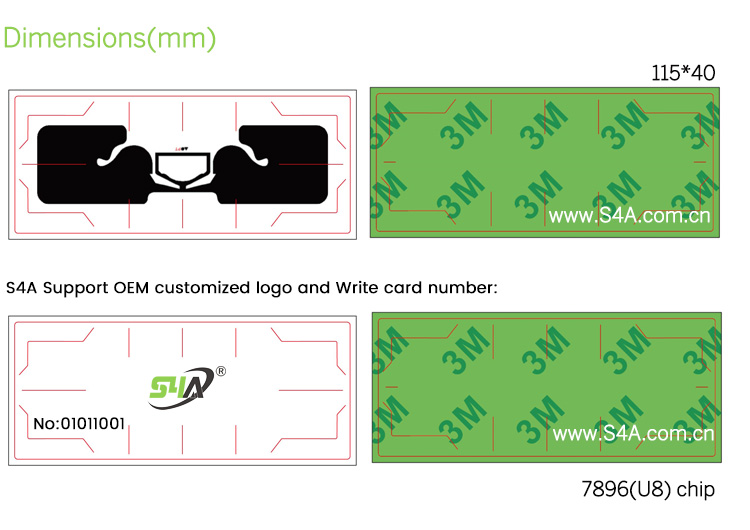

Dimensions-7896(U8) Windshield Tag.jpg
