| ● Basic Parameters | |
| Types | UHF passive RFID tags |
| Working Frequency | 860-960MHz |
| Protocol | ISO / IEC 18000-6C EPC Class1 Gen2 |
| ● Physical Parameters | |

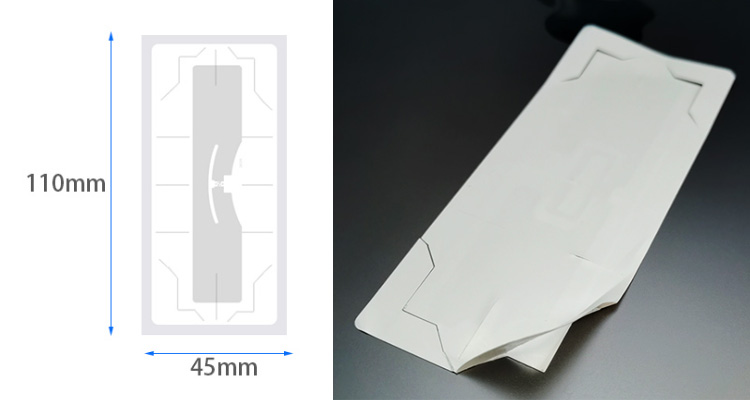

| Size | 110 * 45mm |
| Packaging Materials | PET, PVC, coated paper, PP Synthetic Paper |
| Antenna | Etching aluminum |
| Craft | 4C offset printing,Print ID number, tamper blade |
| ● Performance Parameters | |
| Chip | H9 9654 |
| Storage | Related to the chip |
| Operating mode | read and write |
| Data Retention | > 10 years |
| Write Endurance | 100,000 times |
| Reading Distance | 0-15m (Related to the chip,antenna and JINYINGUHF Readers) |
| ● Environmental Parameters | |
| Working temperature | (-25 ℃ ~ + 55 ℃) |
| Storage temperature | (-35 ℃ ~ + 70 ℃) |
| ● Typical Applications | |
| Applications | Traffic management, highway toll collection management, vehicle access control system management,community parking system management |
| ● Package | |
| Packaging Information | 200 Piece/BOX |

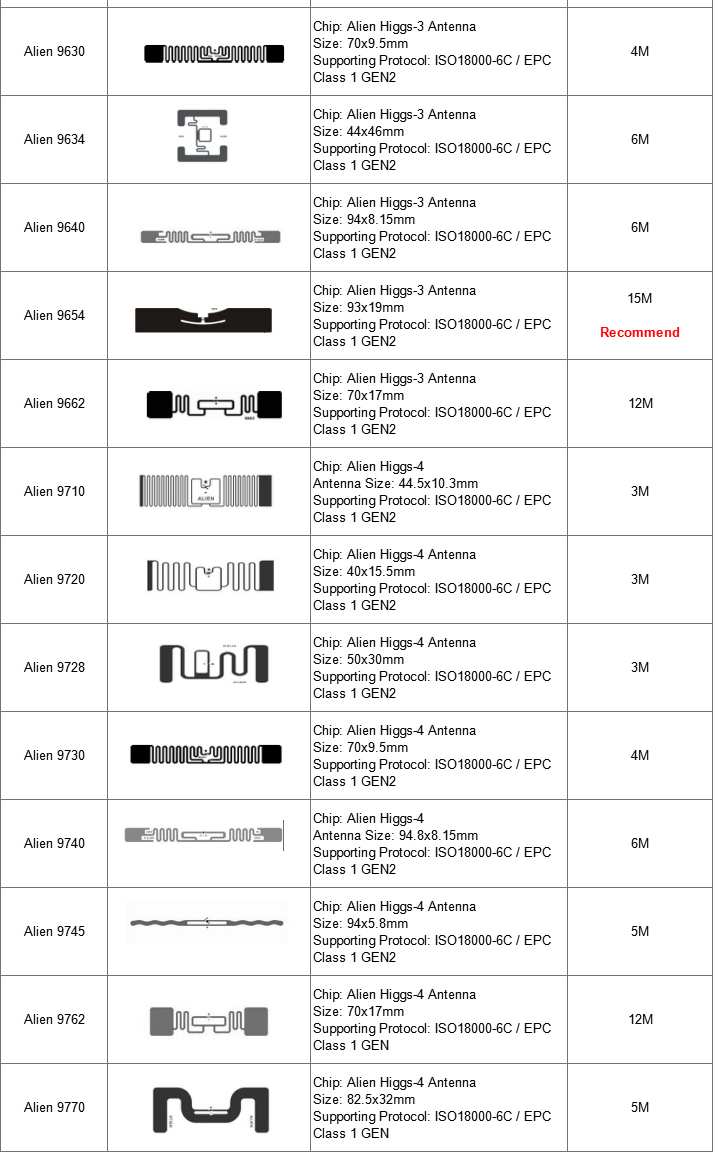

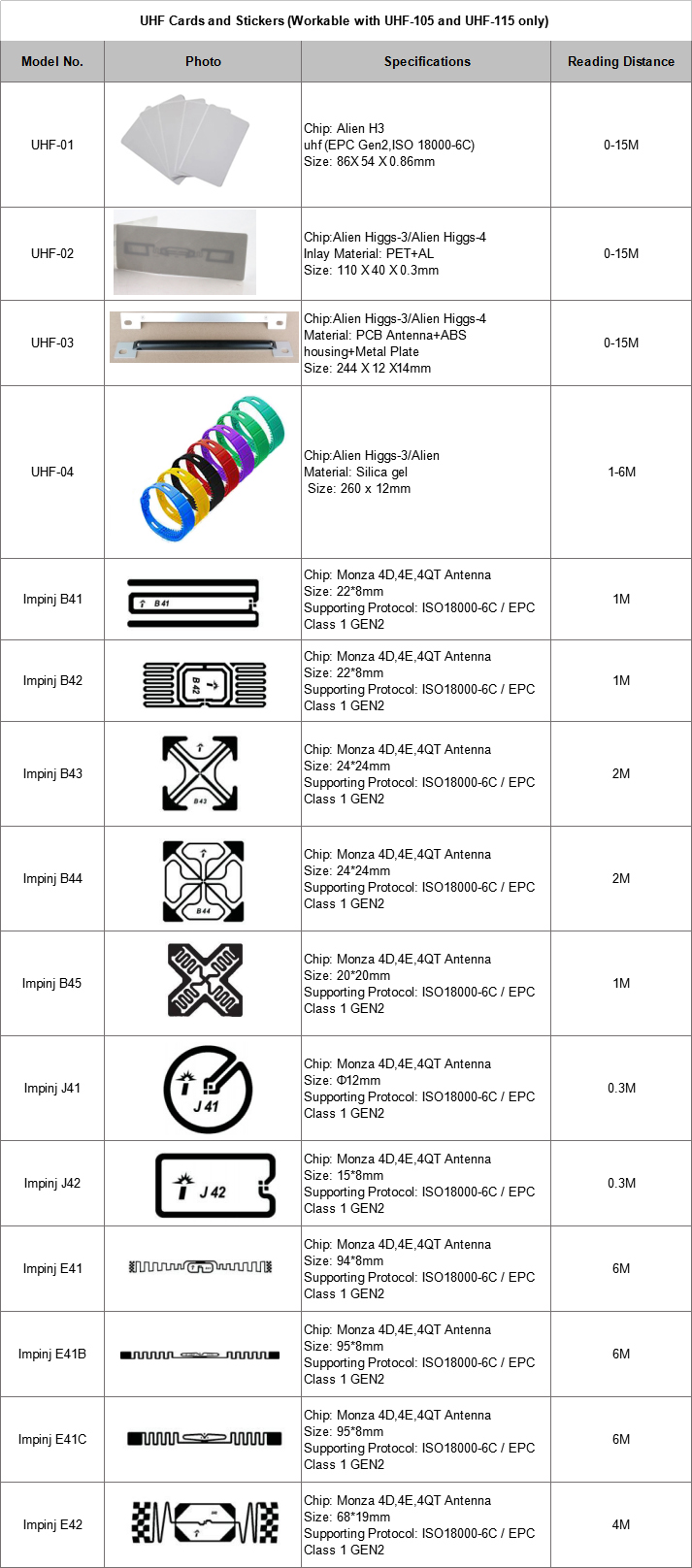

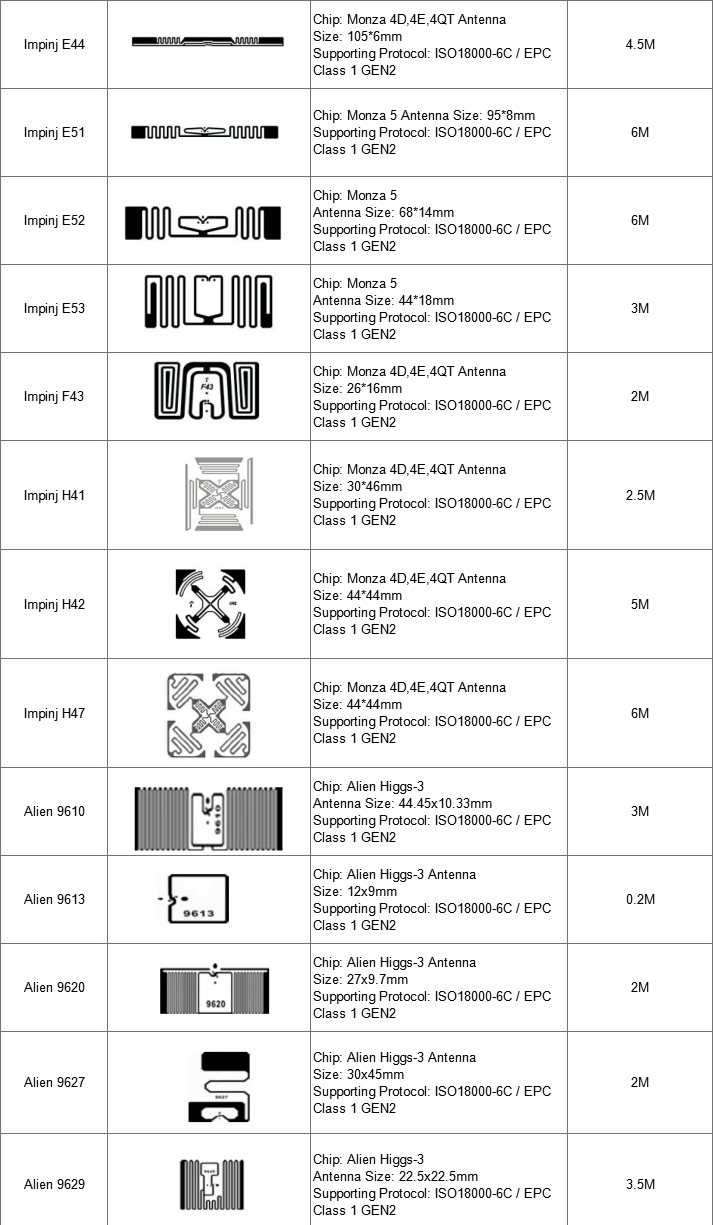

Here listed different types for Windshield Tags:
| JINYINGModel | UHF-03 |
| Packing Quantity | 3000 PCS/CTN |
| Packing Size(L*W*H) | 30*28*27 (cm) |
| Gross Weight | 8.5KG |
