| ● Basic Parameters | |

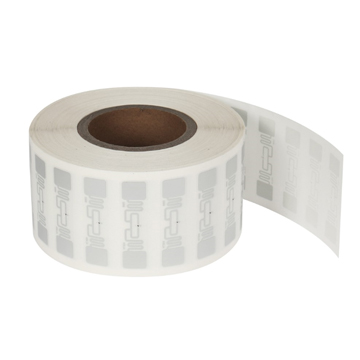

| Types of | UHF passive RFID tags |
| Working Frequency | 860-960MHz |
| Protocol | ISO / IEC 18000-6C EPC Class1 Gen2 |
| ● Physical Parameters | |
| Size | 70 * 17mm |
| Packaging Material | PET + etched aluminum antenna |
| Antenna | Etching aluminum |
| Craft | None |
| ● Performance Parameters | |
| Chip | Alien 9662 ( H3 ) |
| Storage | Related to the chip |
| Working Mode | Read and write |
| Data Retention | > 10 years |
| Write Endurance | 100,000 times |
| Reading Distance | 0-15m (Related to the chip,antenna and JINYINGUHF Readers) |
| ● Environmental Parameters | |
| Working temperature | (-25 ℃ ~ + 55 ℃) |
| Storage temperature | (-30 ℃ ~ + 65 ℃) |
| ● Typical Applications | |
| Applications | Logistics, Assets management, Retail management, Pharmaceutical management, Supply chain management |
| ● Package | |
| Packaging Information | 2000PCS/Roll |
