Model:
QR-86Brand:
JINYING| Product Parameter | Parameter Descr1ption |
| JINYINGModel | QR-86 |
| Product Name | Static QR Code Card Reader |

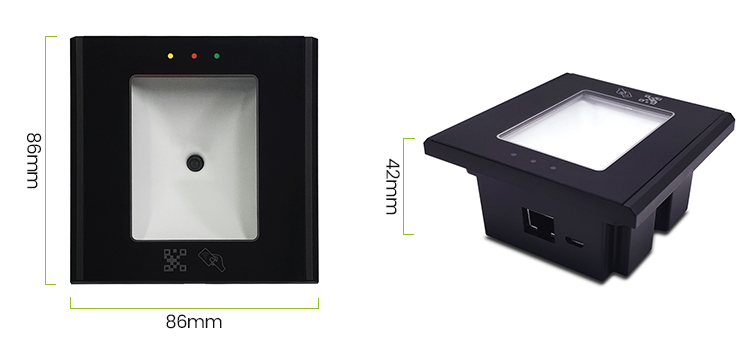

| Dimensions | 86Lx86Wx42H(mm) |
| Reading card type | EM or Mifare card |
| Material | Case:PC Identify panel:tempered glass |

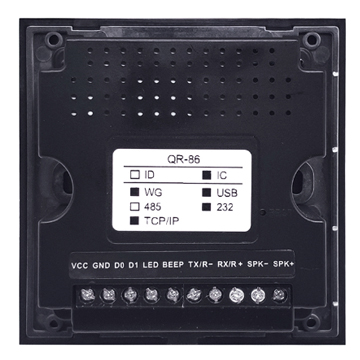

| Interface | Default: WG26/WG34,RS485,USB,TCP/IP Option: WG26/WG34,RS232,USB,TCP/IP |
| Decoding support | QR code, one dimensional code |
| Voltage | Support 4-15V Wide voltage input |
| Current | 800mA |
| Reading directions | Camera centric slant 45° |
| Reading speed | <200ms |
| Reading range | 0-20CM |
| Reading feature | auto-induction, beep hint |
| Light source | With LED light source itself anti-highlight interference |
| Decode Mode | Image decoding |
| Application environment | Temperature：-20~70℃ Humidity：10%~90% |
| Operate system | Windows(xp 7 8 10)、Linux |
| Indicating status light | Red-Work、Green-Feedback、Light Green-Internet |
| Reading range | 3-6CM |
| Unit Weight | 0.15KG |
| Standard Package | 108PCS/carton |
| Carton Weight | 17KG |
| Carton Size | 60*28*51(cm) |
QR-86 QR Code Card Reader, How to Restore Factory Settings:
Use Sharp objects inserted into REST hole of QR code reader backside,
release till the QR code reader automatically restarted.
