| Product Parameter | Parameter Description |
| JINYINGModel | PCD-96A |

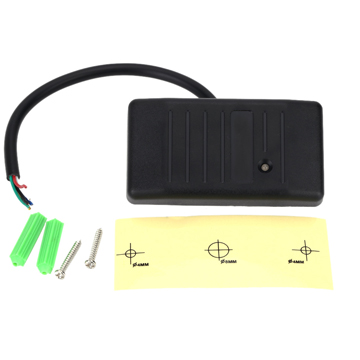

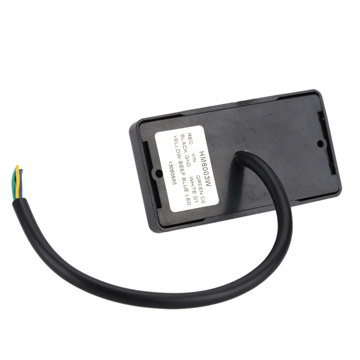

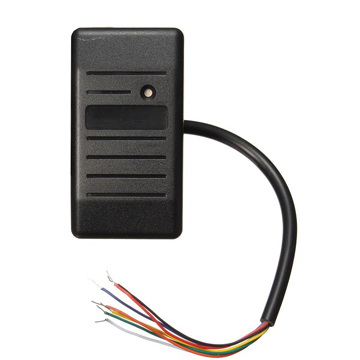

| Product Name | Mini Wiegand Card Reader |
| Card Type | RFID/Mifare/HID |
| Read Range | 5 ~ 10cm |
| Working Voltage | DC 5V-16V |
| Static Current | Less than 80mA |
| Output Format | 26bit/34bit Wiegand (default) |
| Communication Distance | Within 100M |
| Operating Temperature | -20° to +65°C |
| Operating Humidity | 10% to 90% relative humidity non-condensing |
| Material | ABS |

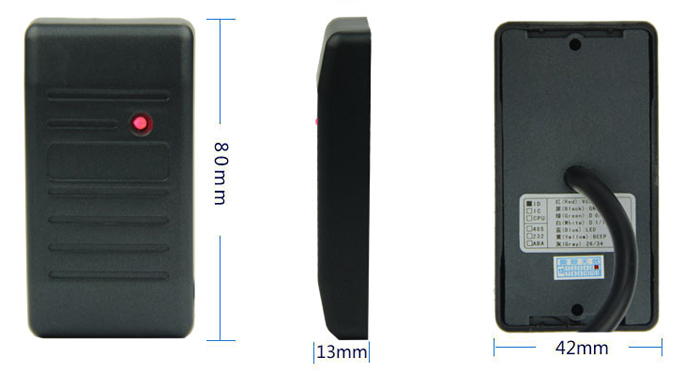

| Dimension | 80L *42W*13Hmm |
