| Product Parameter | Parameter Description |
| JINYINGModel | R6 |

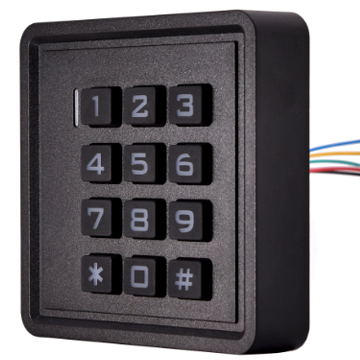

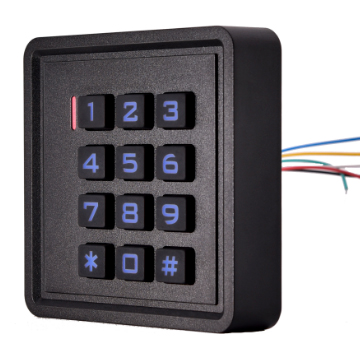

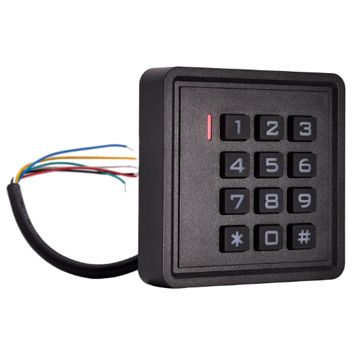

| Product Name | ABS & IP68 Waterproof Pincode Card Reader |
| Card type | EM/Mifare |
| Operating Voltage | 9-16V DC |
| Working voltage | DC12V |
| Static electricity | ≤30mA |
| Waterproof | Conforms to IP68 |
| Reading Distance | 3-6 cm |
| Ambient temperature | -45～60℃ |
| Humidity | 10%～90% |
| Wiegand Interface | WG26/34 |

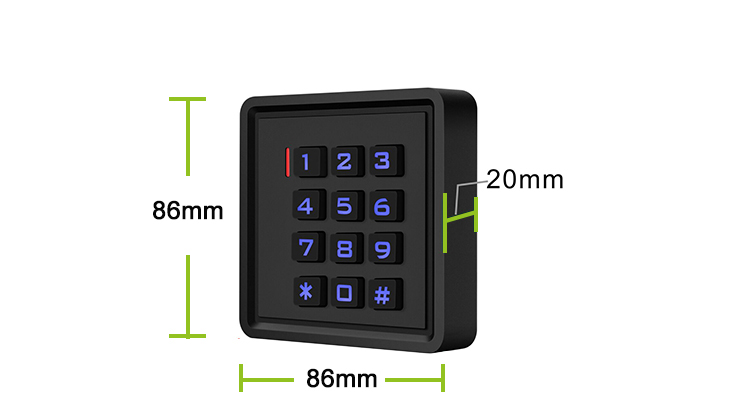

| Dimension | 86*86*20mm |
| Unit Weight | 0.4KG |
| Standard Package | 54PCS |
| Carton Weight | 22.6KG |
| Carton Size | 56*40*41cm |

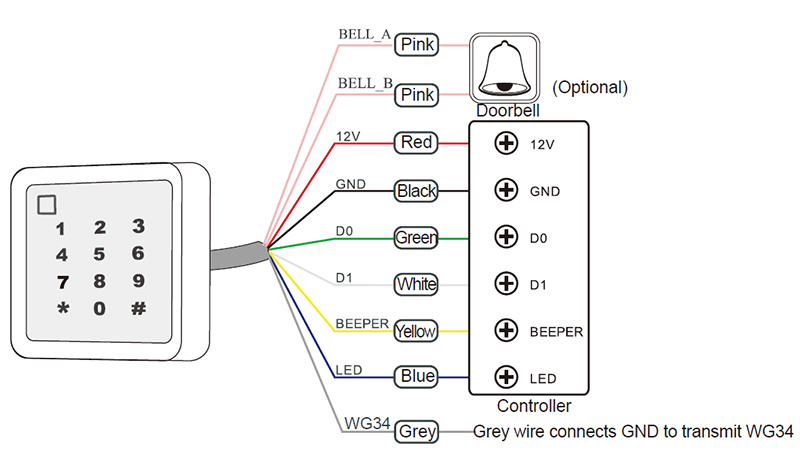

| Wire No. | Function | Color | Description |
| 1 | BELL-A | Pink | Doorbell button one end |
| 2 | BELL-B | Pink | Doorbell button to another end |
| 3 | LED | Blue | Connect controller LED |
| 4 | Beeper | Yellow | Connect controller beeper |
| 5 | D0 | Green | WG output line D0 |
| 6 | D1 | White | WG output line D1 |
| 7 | +12V | Red | Power supply +12V |
| 8 | GND | Black | Power supply -12V |
| 9 | W34 | Gray | Grey wire connects GND to transmit Wiegand 34 |
