SK4-R Wiegand Reader (EM/HID)

SK4-R ID+HID is of digital backlit, supports to read 125KHz EM & HID cards._x000d_ It is a metal case, Wiegand output keypad, with integrated proximity reader._x000d_ Because of waterproof, it can be mounted either indoor or outdoor in harsh environments.

  • Model:

    SK4-R

  • Brand:

    JINYING
Inquiry now
  • Parameters
    •

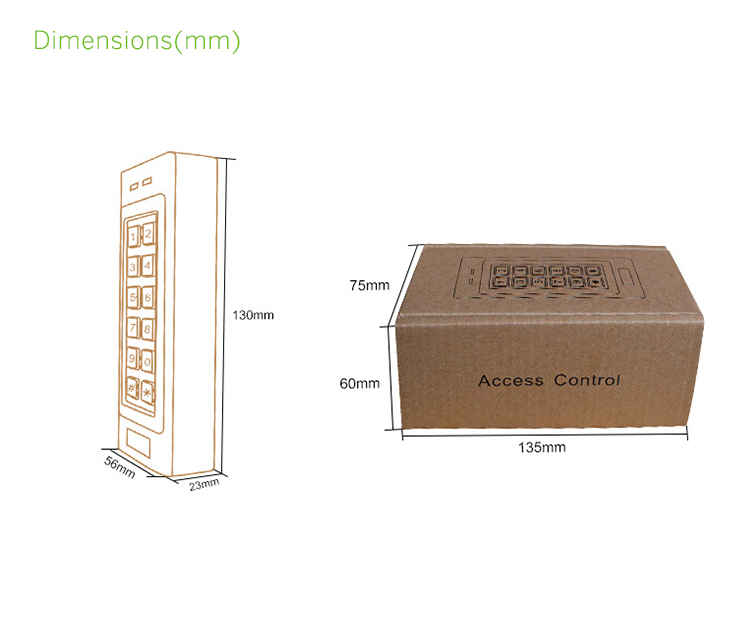

  • Dimensions
    •

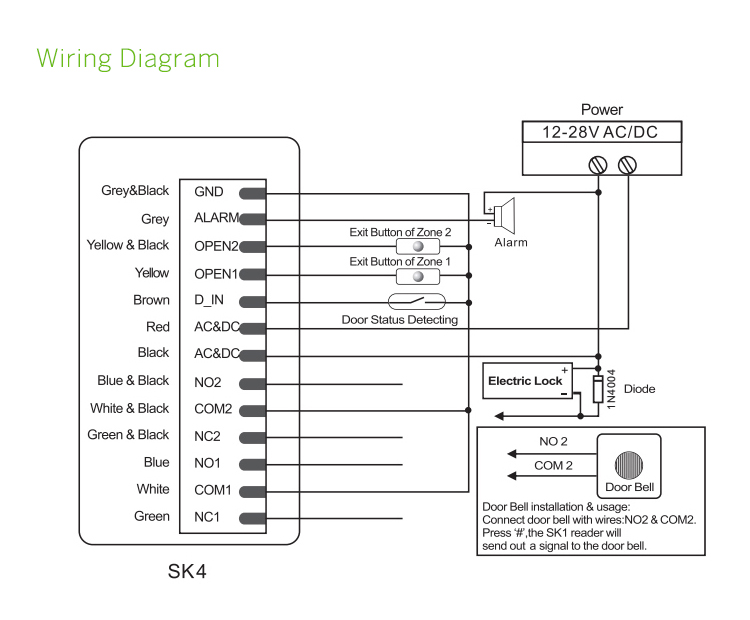

  • Diagram
    •

SK4-R ID+HID

Wiegand Reader (EM+HID)

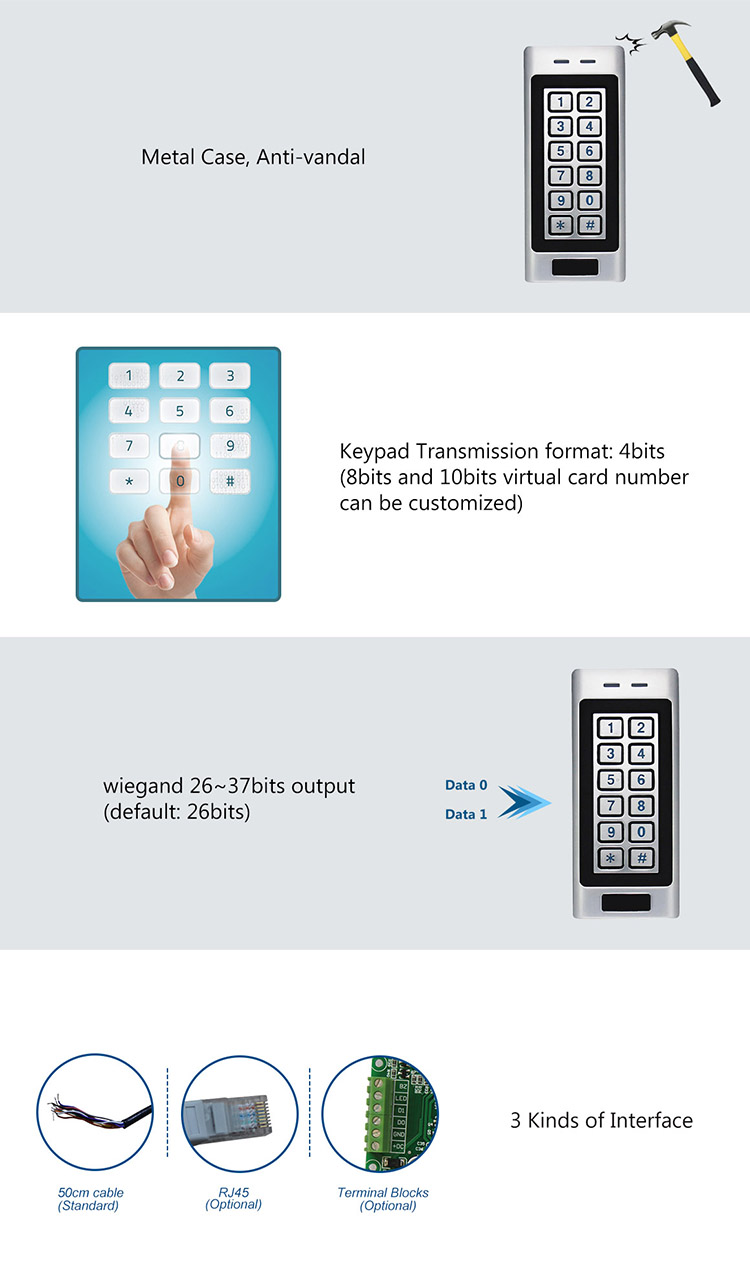

> Metal Case, anti-vandal

> Waterproof, conform to IP66

> Card Type: 125KHz EM & HID Cards/Fobs

> Wiegand Format: Wiegand 26 default (26~37 available upon request)

> Keypad Transmission: 4 bits (8bits or virtual card number format are available upon request)

> Working temperature: -40 oC ~ 60 oC (-40 oF ~ 140 oF)

> Reading range: 4 ~ 8 cm



Product ParameterParameter Description
JINYINGModelSK4-R ID+HID
Product NameWiegand Reader (EM+HID)


Frequency125KHz + HID
Card TypeEM & HID Cards/Fobs
Read Range4~8 cm
Standby Current< 35mA
Operating Voltage9~18V DC
Wiegand Output FormatWiegand 26 bits (factory default)
26~37 bits available upon request
Keypad Transmission Format4 bits (factory default)
8 bits or virtual card number format are available upon request
Operating Temperature-40 °C ~ 60 °C
Operating Humidity0% RH ~ 96% RH
Index of ProtectionIP66
Dimension13.0L x 5.6W x 2.3H (cm)
Net Weight500g
Shipment Weight650g

Unit Weight0.5KG
Standard Package20PCS/carton
Carton Weight10.4KG
Carton Size29*33*19(cm)
