| Product Parameter | Parameter Description |
| JINYINGModel | OP10A |

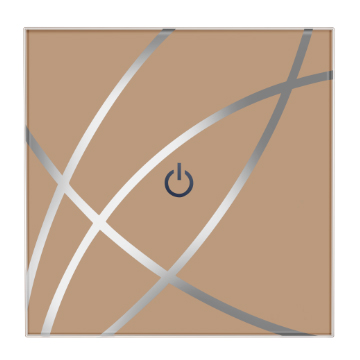

| Product Name | Sensitive Touch Screen Exit Button |

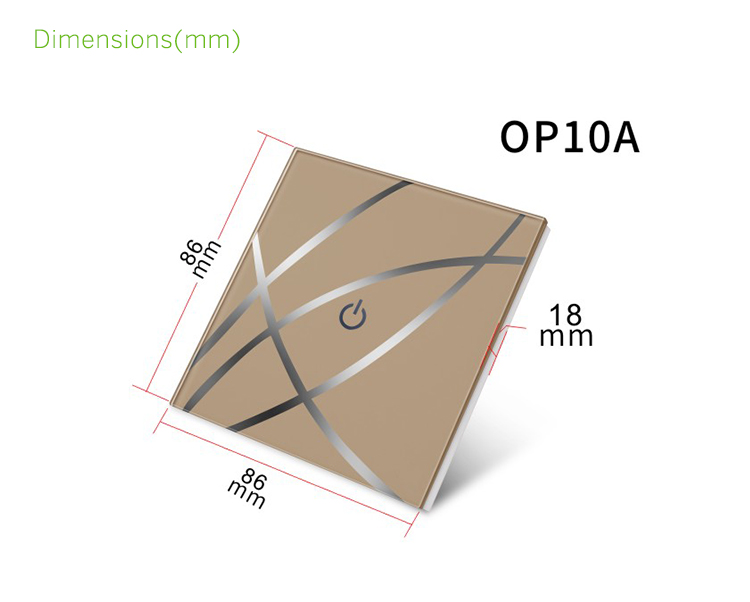

| Dimensions | 86Lx86Wx18H(mm) |
| Input | DC9-12V |
| Contact Rating | <600ma |

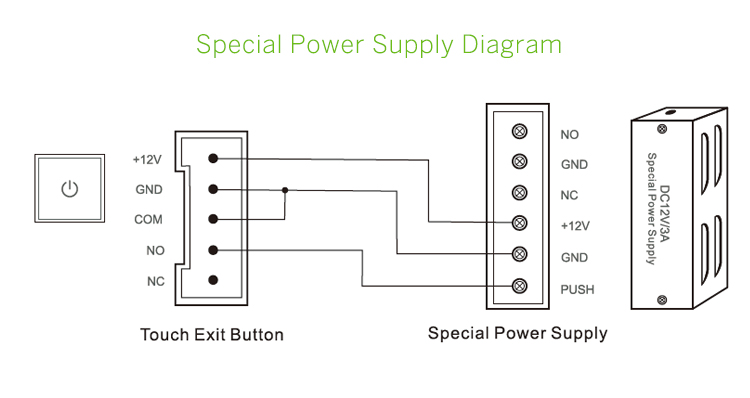

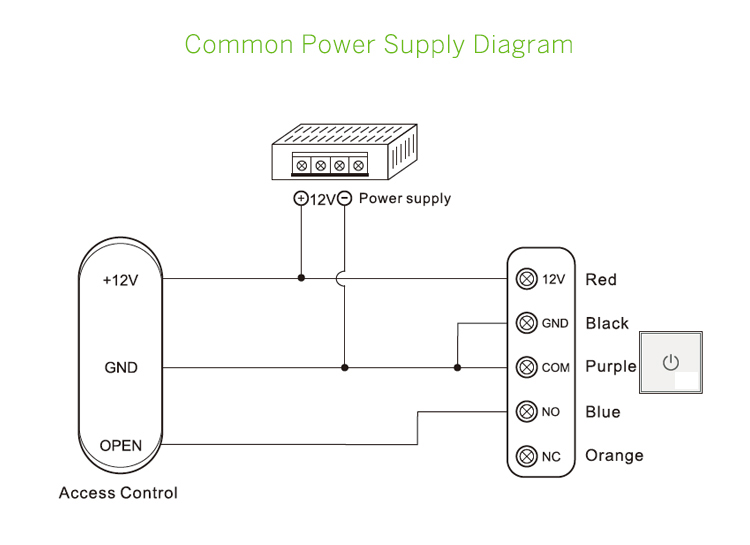

| Output Contact | NO/NC/COM |
| Mechanical Life | 500000 tests |
| Suitable for Door | Hollow Door |
| Operating temp | -20℃～+55℃(14-131F) |
| Suitable Humidity | 20% ~ 80% |
| Unit Weight | 0.1KG |
| Standard Package | 100PCS/carton |
| Carton Weight | 10KG |
| Carton Size | 58.5*22.5*47.5(cm) |
