Model:
EB-S70KDBrand:
JINYING| Product Parameter | Parameter Description |

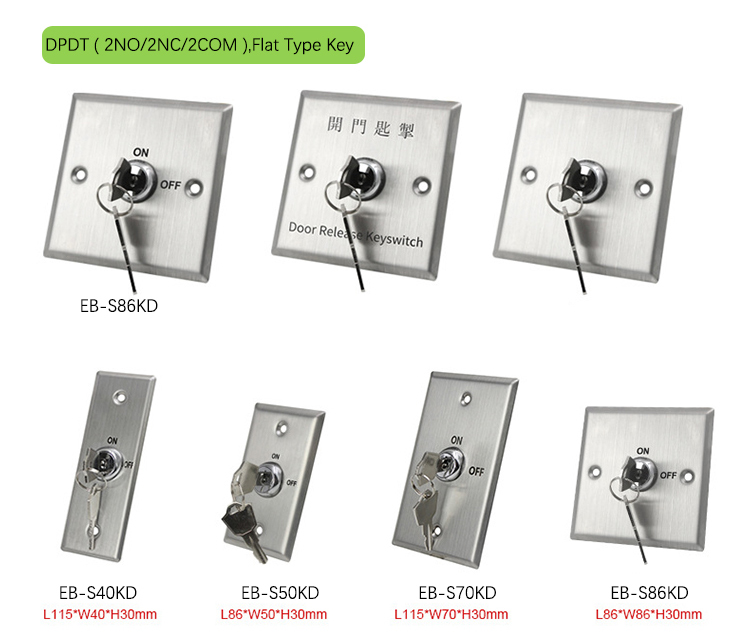

| JINYINGModel | EB-S70KD |
| Product Name | Key Switch |
| Dimensions | 115Lx70W(mm) |
| Material | Stainless Steel |
| Output Contact | DPDT ( 2NO/2NC/2COM ) |
| Key | Flat Type Key |
| Installation Diameter | 19mm |
| Input | DC12V |
| Contact Rating | 3A/125-250VAC |
| Mechanical Life | 500000 tests |
| Operating temp | -20℃～+55℃(14-131F) |
| Suitable Humidity | 0-95% (relative humidity) |
| Unit Weight | 0.13KG |
| Standard Package | 100PCS/carton |
| Carton Weight | 14KG |
| Carton Size | 51*43*33(cm) |
