Model:
EB-20G GreenBrand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | EB-20G |

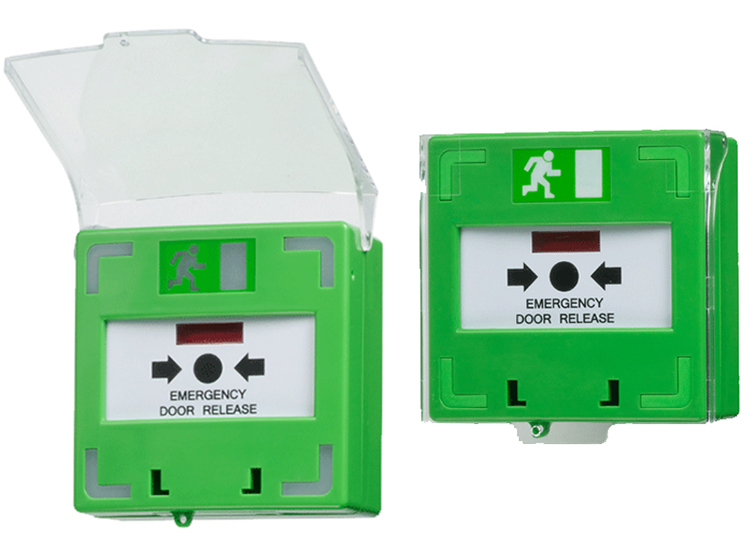

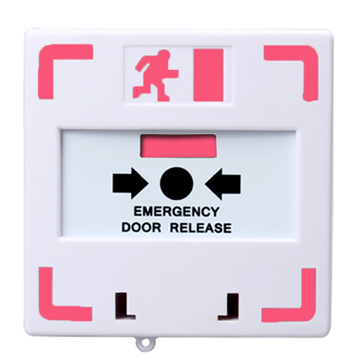

| Product Name | Resetable Switch Call Point with Dual LED |
| Dimensions | 90Lx93Wx45H(mm) |
| Material | ABS, PC (transparent part) |
| Surface | Surface Mount |
| Standard Structure | Fireproof Material, Easy to install |
| Operation current | DC 12V/18mA(Standby)/75mA(Operation) (±5%) DC 24V/11mA(Standby)/41mA(Operation) (±5%) |
| Output | N.O.N.C.&COM. Output(Maximum load of 125V/3A) |
| Power Supply | DC12-DC 24V (±5%) |
| Buzzer | Set as silent, interval wailing or continuous wailing |
| Indicator | Dual-color(red and green) Red indicator to set blink, off or on |
| Color | Red,White,Green,Orange, Yellow,Black,Blue etc |
| OEM & ODM | Support customized |
| Unit Weight | 0.2KG |
| Standard Package | 100PCS/carton |
| Carton Weight | 20KG |
| Carton Size | 50*45*24(cm) |
