Product Parameter | Parameter Description |
金颖 Model | ID-WG26 |
Product Name | Embedded ID iButton Reader |
Operating frequency | 125KHz |
Range of card reading | 2-6 cm |

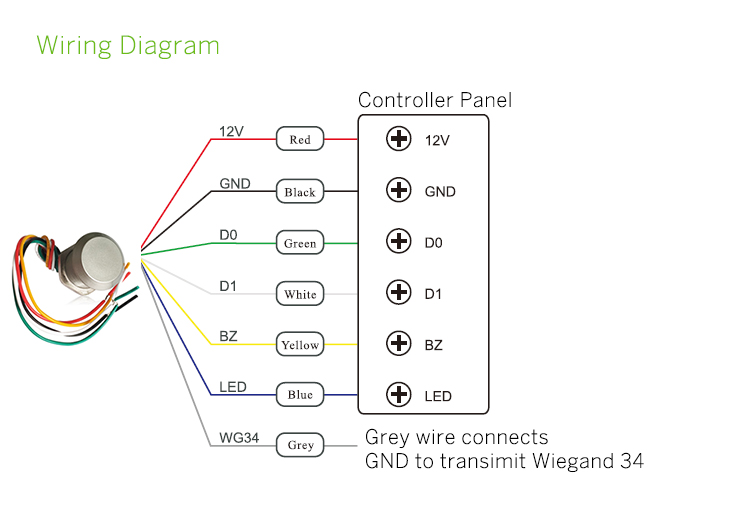

Protocol for connection to the controller | Wiegand 26 |
Power supply | 6 - 18 VDC |
Current consumption | 35 mA |
Light indication | Red LED |
Housing material | Polyamide |
Unit Weight | 0.027KG |
Standard Package | 300PCS/carton |
Carton Weight | 8.1KG |
Carton Size | 26*36*44(cm) |
In standby mode, there is a red light.
At the moment of touch by key fob, the red light will turn off for one second.
While the card close to the reader, the light indication is disabled.
