| Product Parameter | Parameter Description |
| 金颖 Model | X2-RX |

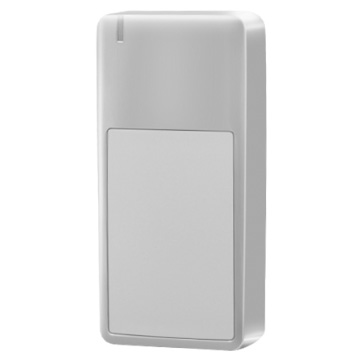

| Product Name | Wiegand Reader (EM+HID+MF) |
| Frequency | 125KHz & 13.56MHz |

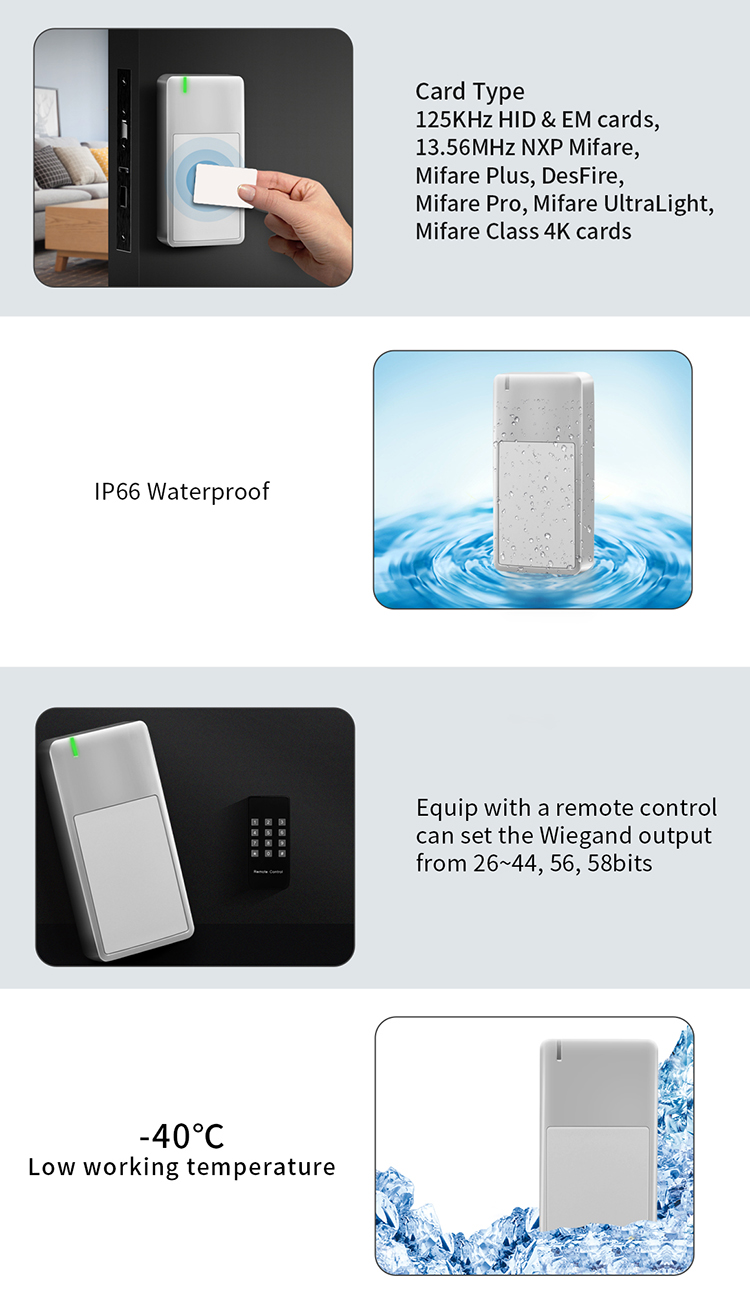

| Card Type | 125KHz - EM & Hid Card |
13.56MHz - NXP Mifare, Mifare Plus, DesFire, Mifare Pro, Mifare UltraLight, Mifare Class 4K cards | |
| Reading Distance | 3~8 CM |
| Output Format | Wiegand 26~44, 56, 58 bits |
| Operating Temperature | -40 °C ~ 60 °C (-40 °F ~ 140 °F) |
| Standby Current | < 25mA |
| Operating Humidity | 10%~98% RH |
| Index of Protection | IK10 & IP66 |

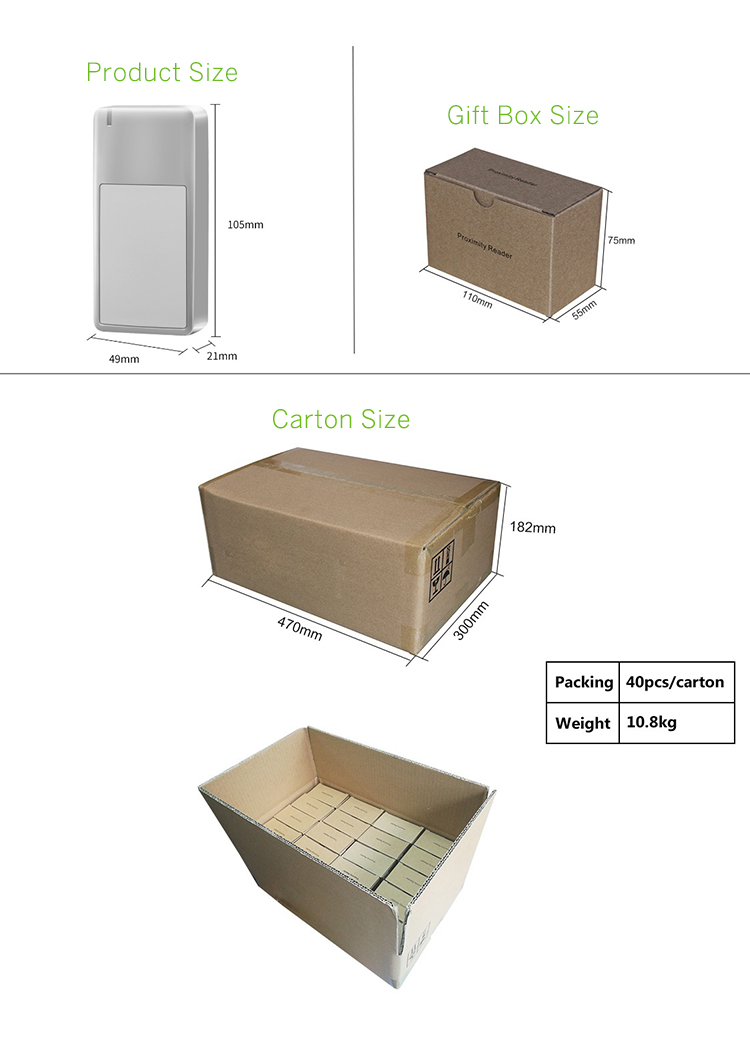

| Dimensions | L105 x W49 x H21 (mm) |
| Unit Weight | 0.25kg |
| Standard Package | 40PCS/carton |
| Carton Weight | 10.8kg |
| Carton Size | 47*30*18.2(cm) |
